Stainless Steel Wall Mount Sinks
All sink bowls have a large liberal radius. Rectangular in design for increased capacity
Stainless Steel Wall Mount Sinks Models: SIH817-K, SIH817-P
Wall Mount Utility Hand Sink Models: SIH819-WM
Hand Sink Accessories Models: SIH-FW, SIH-FV
NSF Certified
Warnock Hersey
- All sink bowls have a large liberal radius
- Rectangular in design for increased capacity
- Keyhole wall mount bracket
- Stainless steel basket drain with a 1½" IPS
- 8" backsplash
- 4" center faucet holes
- All TIG welded
- Welded areas are blended to a satin finish to match adjacent surfaces
- Die formed countertop edge with a No-Drip offset
- One sheet of stainless steel means no seams
- Heavy gauge Type 304 stainless steel
- Wall mounting bracket is of offset design in Type 304 stainless steel
- All fittings are brass/chrome unless otherwise indicated
- Faucet supply is 1 1/2" IPS male thread hot and cold
| Product # | Description | Shipping Dimensions WxDxH | Weight (lbs) | Specs |
|---|---|---|---|---|

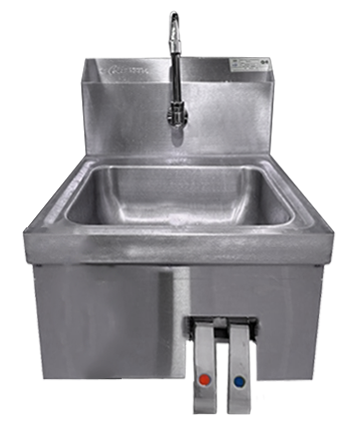

| SIH817-K | Wall mount hand sink w/knee valve and faucet | 16"x16"x18" | 23 |  |
| SIH817-P | Wall mount hand sink w/pedestal base includes spout and foot valve | 18"x17"x14" | 23 | |
| Product # | Description | Shipping Dimensions WxDxH | Bowl Depth | Specs |
|---|---|---|---|---|
| SIH819-WM | Wall mount sink w/10" backsplash, 2 stainless steel tubular brackets | 20"x22"x24" | 4" | |
| Product # | Description | Shipping Dimensions WxDxH | Bowl Depth | Specs |
|---|---|---|---|---|
| SIH-FW | Faucet for hand sink | 9"x5"x3" | 2" | |
| SIH-FV | Foot-valve for hand sink | 11"x6"x3" | 3" | |
