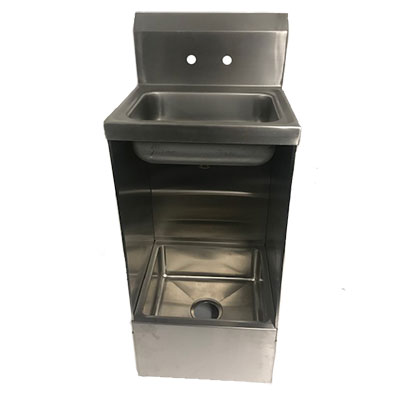

Economy Compartment Center Drain Sinks
- 18 gauge, Type 304 stainless steel construction
- Coved corners for safety and easy cleaning
- Die-stamped drain boards and sink bottoms for positive drainage
- Sinks come with an 14” deep bowl
- Wall clips are provided for neat and easy installation
- All sinks come with 8”center pre-cut and holes for standard wall mount faucets (faucet not included)
- Center drain sinks have 3½” drain holes and come with a drain basket
- Sink heights are 41” floor to top of backsplash
- Seamless one piece construction with 5/8” radius corners for easy cleaning
- All TIG welded
- Welded areas are blended to match adjacent surface and blended to a satin finish
- Gussets are welded to a die embossed reinforced plate
- Galvanized legs w/ ABS adjustable feet
- Optional leg braces are available for additional support in heavy duty applications
NSF Certified
Product Specifications
| Product # | SI818-1NC-E | SI818-2NC-E | SI818-3NC-E |
| Width | 23.5" | 23.5" | 23.5" |
| Depth | 23" | 41" | 59" |
| Height | 44.5" | 44.5" | 44.5" |
| Weight (lbs) | 51 | 73 | 95 |
| Specs |  | | |
| Drawings | | | |
| Product # | SI824-1NC-E | SI824-2NC-E | SI824-3NC-E |
| Width | 29.5" | 29.5" | 29.5" |
| Depth | 29" | 53" | 77" |
| Height | 44.5" | 44.5" | 44.5" |
| Weight (lbs) | 62 | 93 | 124 |
| Specs | | | |
| Drawings | | | |
