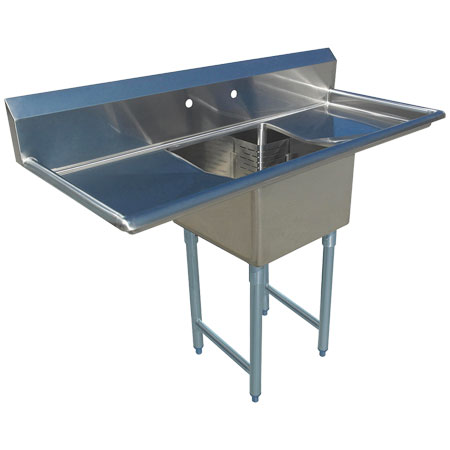

18" Compartment Corner Drain Sinks

18 gauge, Type 304 stainless steel construction for lasting durability. Coved corners for safety and easy cleaning

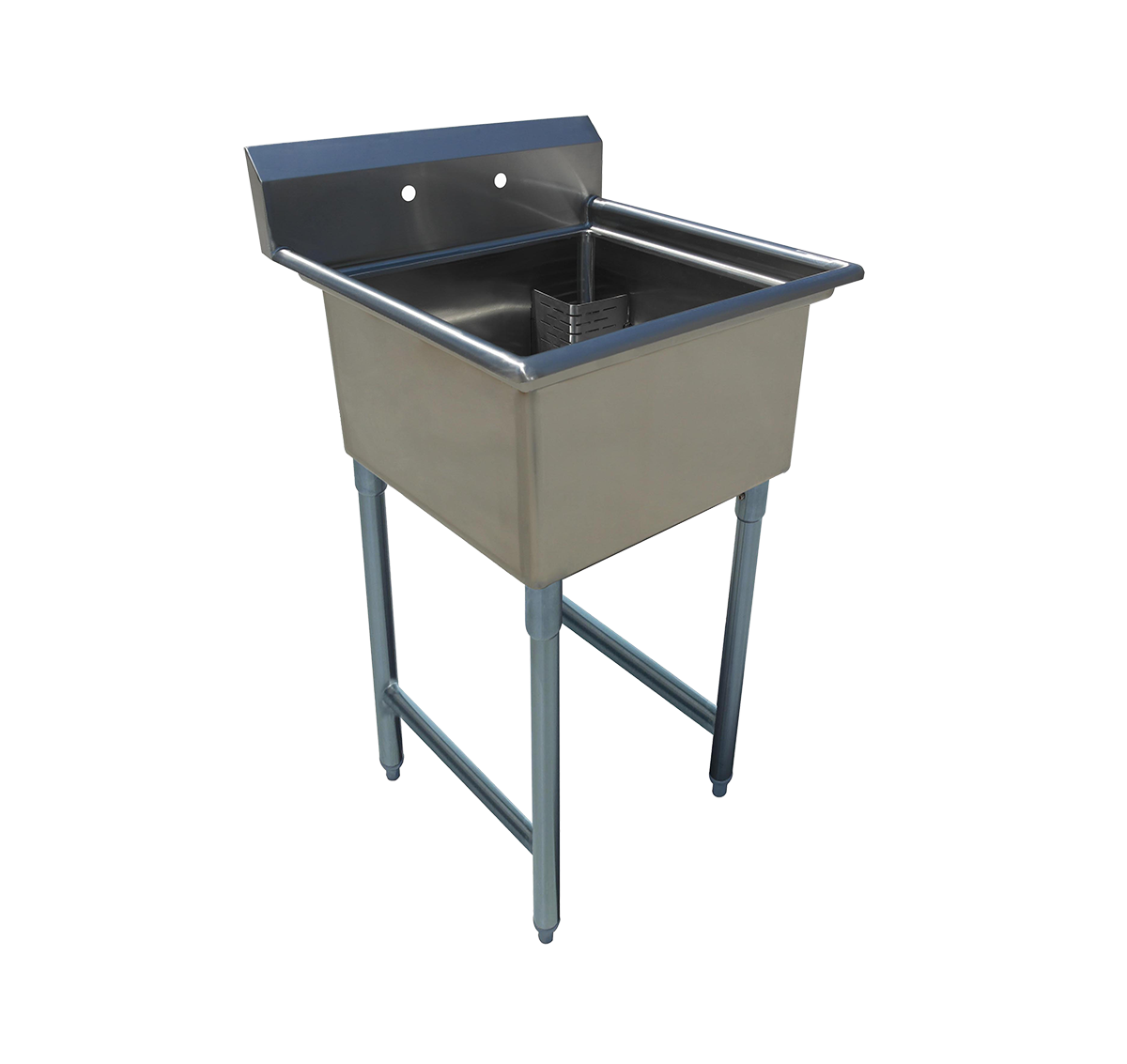

18" Single Compartment Models:  SI818-1N, SI818-1L, SI818-1R, SI818-1B


18" Double Compartment  Models: SI818-2N, SI818-2L, SI818-2R, SI818-2B

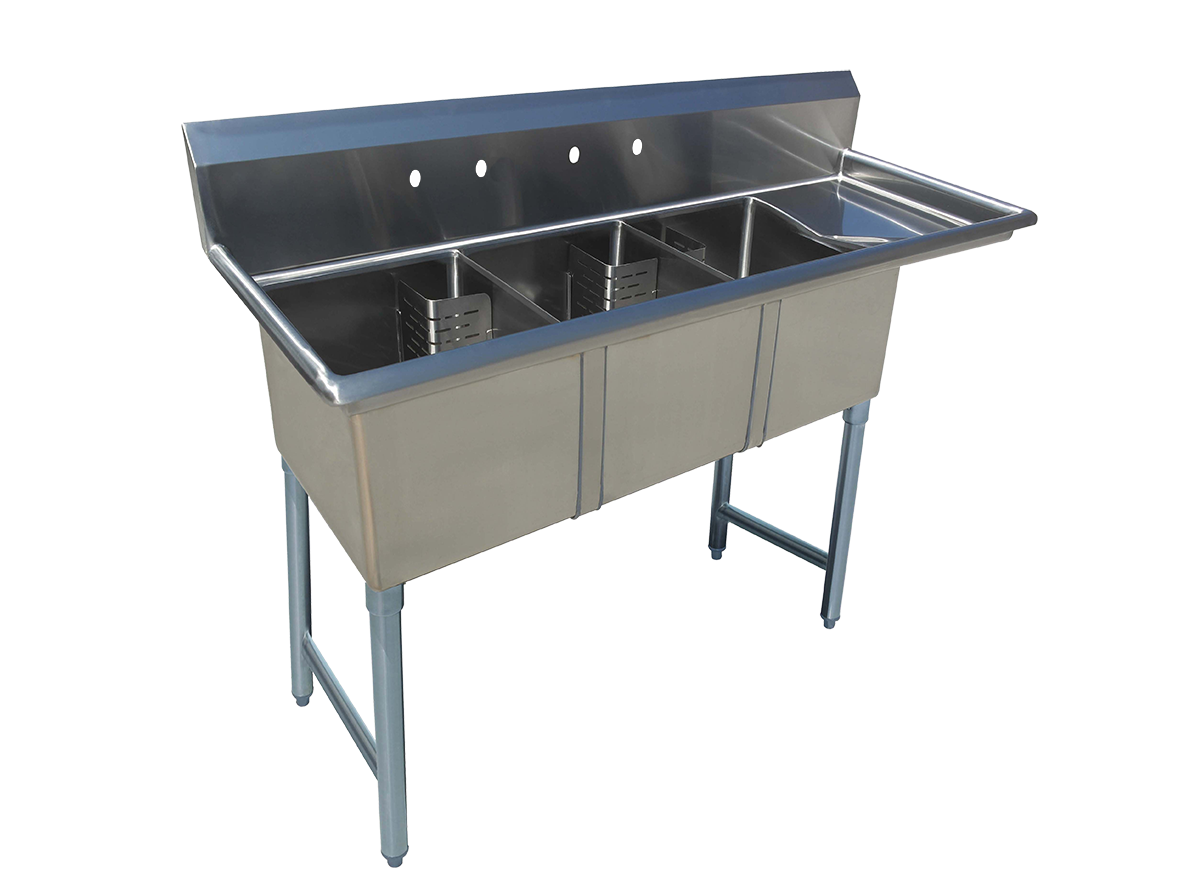

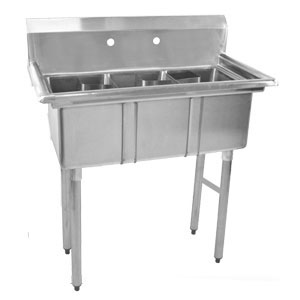

18" Triple Compartment ModelsSI818-3N, SI818-3L, SI818-3R, SI818-3B

  • 18 gauge, Type 304 stainless steel construction for lasting durability
  • Coved corners for safety and easy cleaning
  • Die-stamped drain boards and sink bottoms for positive drainage
  • Prep. sinks come with an 11" deep bowl and are available with center or corner drain
  • Pot sinks come with a 18" bowl and are available with corner drain
  • Wall clips are provided for neat and easy installation
  • All sinks come with 8" center pre-cut and holes for standard wall mount faucets (faucet not included)
  • Corner drain sinks come with corner drain guard, overflow pipe and drain pipe extension
  • Corner drain sinks have a 1 7/8" diameter drain hole and come with drain basket
  • Center drain sinks have 3½" drain holes and come with a drain basket
  • Sink heights are 36” floor to rim and 44½" floor to top of backsplash
  • Seamless one piece construction with 5/8" radius corners for easy cleaning
  • All TIG welded
  • Welded areas are blended to match adjacent surface and blended to a satin finish
  • Gussets are welded to a die embossed reinforced plate

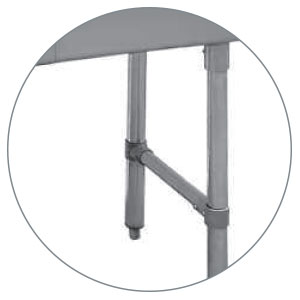

  • Optional leg braces are available for additional support in heavy duty applications
  • 1 5/8" diameter galvanized legs with 1" adjustable plastic bullet feet
Product # Shipping Dimensions W Weight (lbs) Specs Drawings
SI818-1N 24"x24"x24" 58 pdf pdf
SI818-1L 45"x24"x24" 68 pdf pdf
SI818-1R 45"x24"x24" 68 pdf pdf
SI818-1B 66"x24"x24" 79 pdf pdf

Product # Shipping Dimensions W Weight (lbs) Specs Drawings
SI818-2N 42"x24"x24" 83 pdf pdf
SI818-2L 63"x24"x24" 94 pdf pdf
SI818-2R 63"x24"x24" 94 pdf pdf
SI818-2B 84"x24"x24" 106 pdf pdf

Product # Shipping Dimensions W Weight (lbs) Specs Drawings
SI818-3N 59"x24"x24" 110 pdf pdf
SI818-3L 81"x24"x24" 121 pdf pdf
SI818-3R 81"x24"x24" 121 pdf pdf
SI818-3B 103"x24"x24" 133 pdf pdf
