Stainless Steel Drop In Sinks

All sink bowls have a large liberal radius. Rectangular in design for increased capacity


Stainless Steel Drop in Sinks Models: SIHD819-5, SIHD819-10, SIHD819-10-2

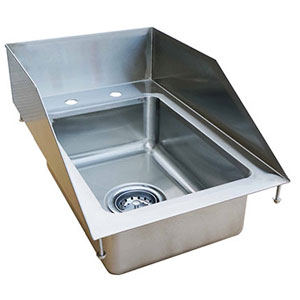

Stainless Steel Drop in Sinks With Splash Guard Models: SIHD819-5-S


Drop in Sinks Accessories Models:  SIHD819-10-S, SIH-FD

  • All sink bowls have a large liberal radius
  • Rectangular in design for increased capacity
  • Stainless steel basket drain with a 1½" IPS
  • 4” center faucet holes
  • All TIG welded
  • Welded areas are blended to a satin finish to match adjacent surfaces
  • One sheet of stainless steel means no seams
  • Heavy gauge Type 304 stainless steel
  • Faucet supply is 1 1/2" IPS male thread hot and cold
Product # Description Shipping Dimensions WxDxH Weight (lbs) Specs
SIHD819-5 Drop in sink 5" bowl depth 13"x19"x5" 10 pdf
SIHD819-10 Drop in sink 10" bowl depth 13"x19"x10" 12 pdf
SIHD819-10-2 Drop in sink with 2 fabricated bowls 25"x19"x10" 5 pdf

Product # Description Shipping Dimensions WxDxH Weight (lbs) Specs
SIHD819-5-S Drop in sink 5" depth bowl w/splash guard 13'x19"x5" 10 pdf
SIHD819-10-S Drop in sink 10" depth bowl w/splash guard 13"x19"10" 12 pdf

Product # Description Shipping Dimensions WxDxH Weight (lbs) Specs
SIH-FD Faucet for drop in sink 9"x5"x3" 2 pdf
