18" Compartment Center Drain Sinks

18 gauge, Type 304 stainless steel construction for lasting durability. Coved corners for safety and easy cleaning


18" Single Compartment Center Drain Sinks Models: SI818-1NC, SI818-1LC, SI818-1RC, SI818-1BC

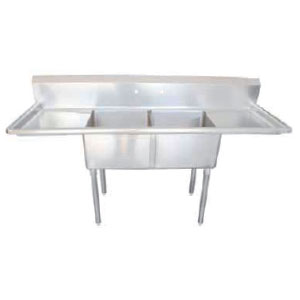

18" Double Compartment Center Drain Sinks Models : SI818-2NC, SI818-2LC, SI818-2RC, SI818-2BC

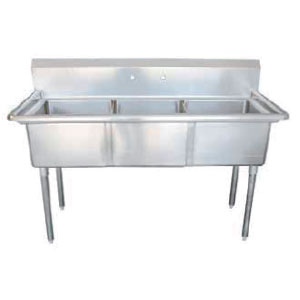

18"Triple Compartment Center Drain Sinks Models : SI818-3NC, SI818-3LC , SI818-3RC , SI818-3BC


  • 18 gauge, Type 304 stainless steel construction for lasting durability
  • Coved corners for safety and easy cleaning
  • Die-stamped drain boards and sink bottoms for positive drainage
  • Prep. sinks come with an 11" deep bowl and are available with center or corner drain
  • Pot sinks come with a 18" bowl and are available with corner drain
  • Wall clips are provided for neat and easy installation
  • All sinks come with 8" center pre-cut and holes for standard wall mount faucets (faucet not included)
  • Corner drain sinks come with corner drain guard, overflow pipe and drain pipe extension
  • Corner drain sinks have a 1 7/8" diameter drain hole and come with drain basket
  • Center drain sinks have 3½" drain holes and come with a drain basket
  • Sink heights are 36” floor to rim and 44½" floor to top of backsplash
  • Seamless one piece construction with 5/8" radius corners for easy cleaning
  • All TIG welded
  • Welded areas are blended to match adjacent surface and blended to a satin finish
  • Gussets are welded to a die embossed reinforced plate
  • Optional leg braces are available for additional support in heavy duty applications
  • 1 5/8" diameter galvanized legs with 1" adjustable plastic bullet feet
Product # Shipping Dimensions W Weight (lbs) Specs Drawings
SI818-1NC 24"x24"x27" 51 pdf pdf
SI818-1LC 39"x24"x27" 60 pdf pdf
SI818-1RC 39"x24"x27" 60 pdf pdf
SI818-1BC 54"x24"x27" 69 pdf pdf

Product # Shipping Dimensions W Weight (lbs) Specs Drawings
SI818-2NC 42"x24"x27" 73 pdf pdf
SI818-2LC 57"x24"x27" 82 pdf pdf
SI818-2RC 57"x24"x27" 82 pdf pdf
SI818-2BC 72"x24"x27" 91 pdf pdf

Product # Shipping Dimensions W Weight (lbs) Specs Drawings
SI818-3NC 60"x24"x27" 95 pdf pdf
SI818-3LC 75"x24"x27" 104 pdf pdf
SI818-3RC 75"x24"x27" 104 pdf pdf
SI818-3BC 90"x24"x27" 113 pdf pdf
