Cooktop Bases
Model : HSD COOKTOP BASES

  • Heavy-duty, 18-gauge, Type 430 stainless steel top provides long life
  • S/S legs and undershelf for durability
  • Double shelf on 48” and 60” models
  • Swing doors for access under the cooktop storage
  • Adjustable feet accommodate uneven flooring
  • Hemmed edges provide strength and safety
  • S/S is machine-polished to a satin finish
  • Reinforced to exceed industry standards
  • Legs are 1 5/8” in diameter
  • Shipped assembled for quick, easy setup (Cabinet and Door sets)
  • Assembly is required for the open undershelf models
ETL Listed
ETL Sanitation Listed
CSA Certified

Product Specifications

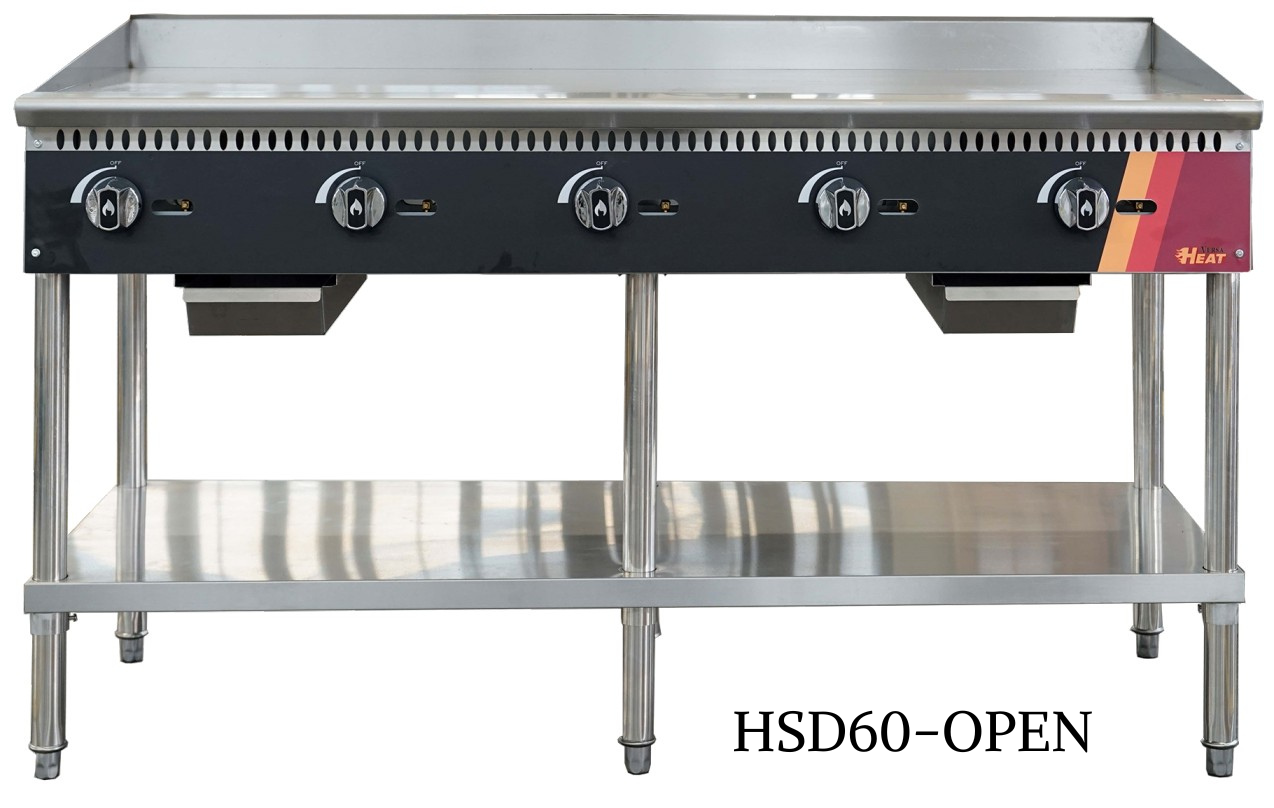

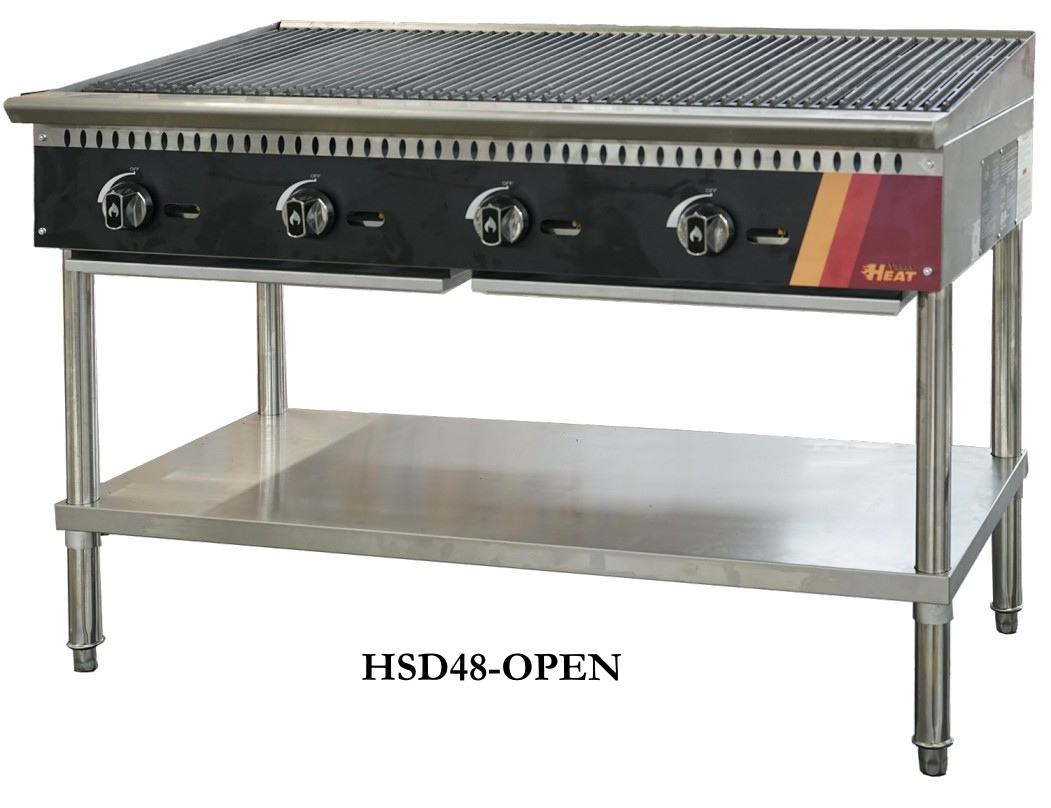

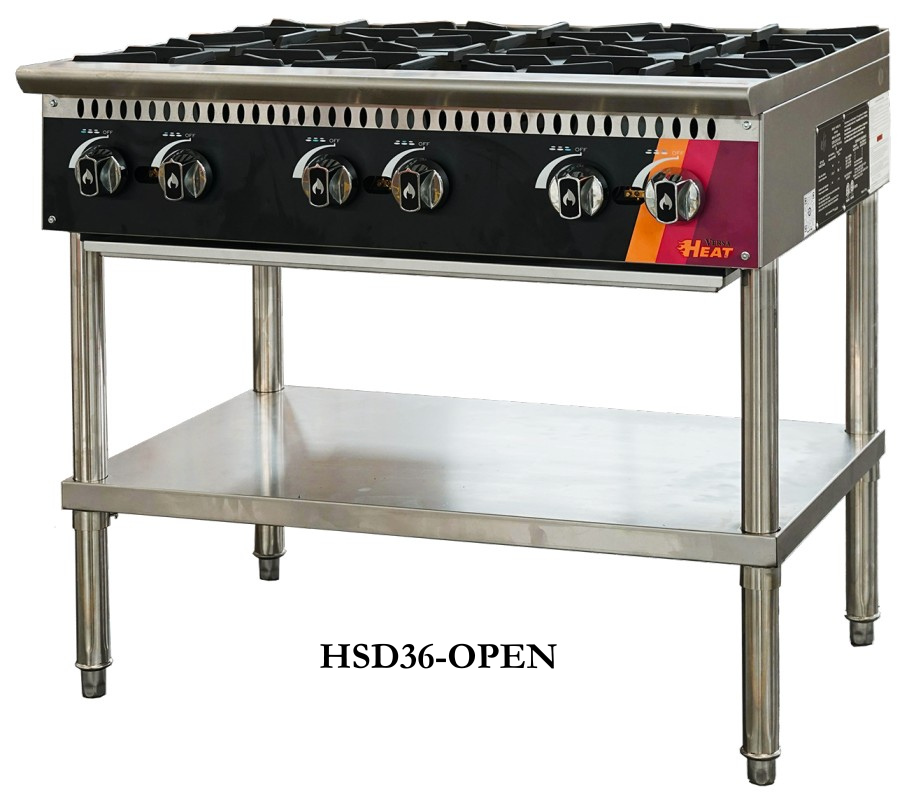

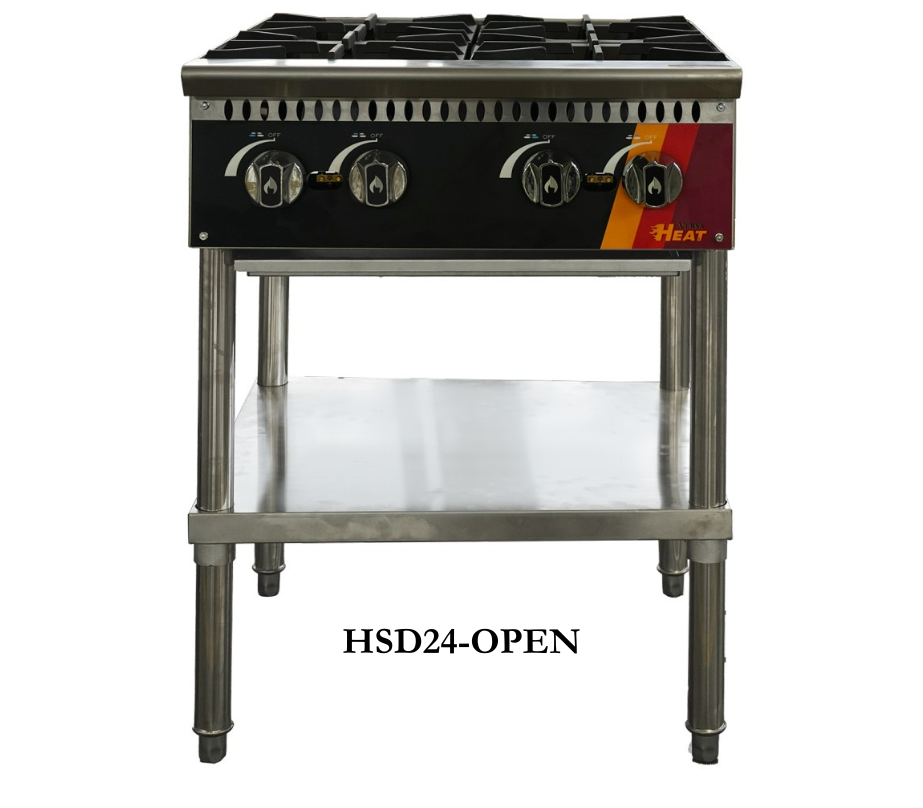

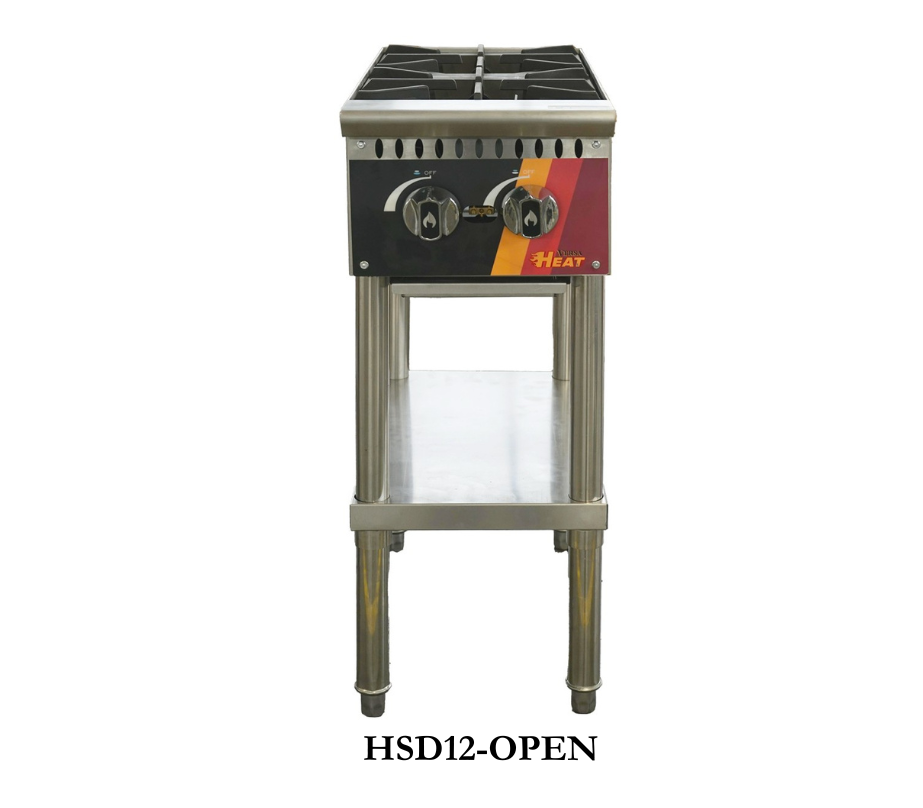

Cooktop Open Bases
Product# HSD12-OPENHSD24-OPENHSD36-OPENHSD48-OPENHSD60-OPEN
Size (inch) 12.4 x 21.8 x 23.148 x 21.8 x 23.136.2 x 21.8 x 23.148 x 21.8 x 23.160.4 x 21.8 x 23.1
Inner (inch) 12 x 21.8 x 17.223.9 x 21.8 x 17.235.8 x 21.8 x 17.247.3 x 21.8 x 17.259.9 x 21.8 x 17.2
Weight 11.7 lb / 5.3 kg14.7 lbs / 6.7 kg16.5 lbs / 7.5 kg19.8 lbs / 9 kg27.5 lbs / 12.5 kg
Shelf Load Cap: 112 lbs / 56 kg175 lbs / 87.5 kg249 lbs / 124.5 kg316 lbs / 158 kg421 lbs / 210.5 kg
Steel 18-Gauge / 430SS18-Gauge / 430SS18-Gauge / 430SS18-Gauge / 430SS18-Gauge / 430SS
Shelves 11111
Number of Legs 44444
Specs pdfpdfpdfpdfpdf

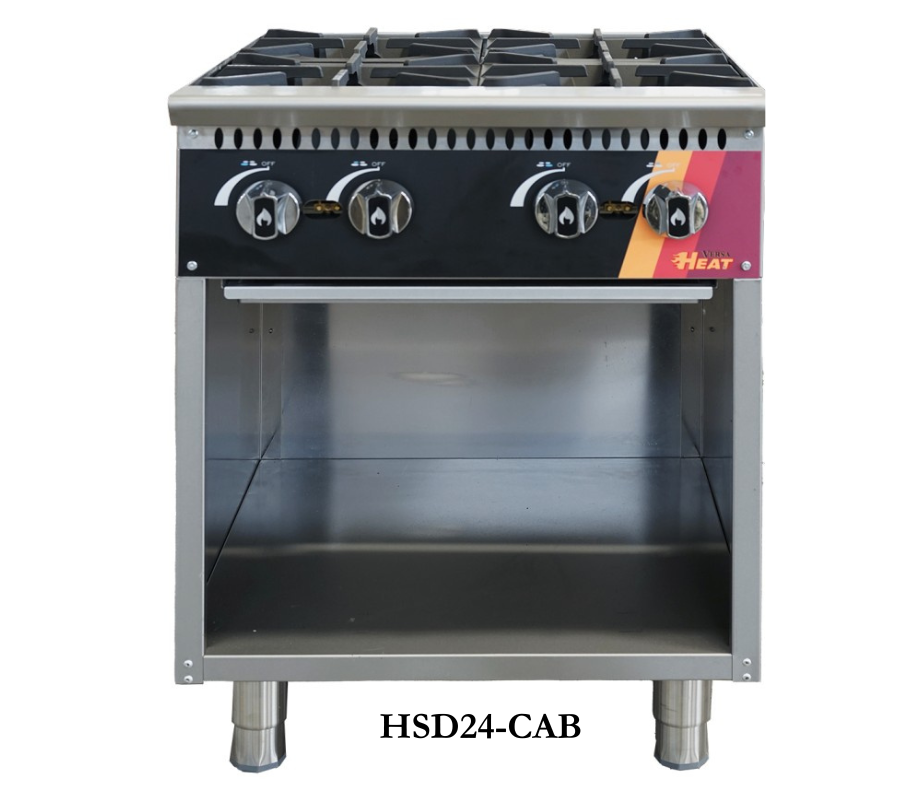

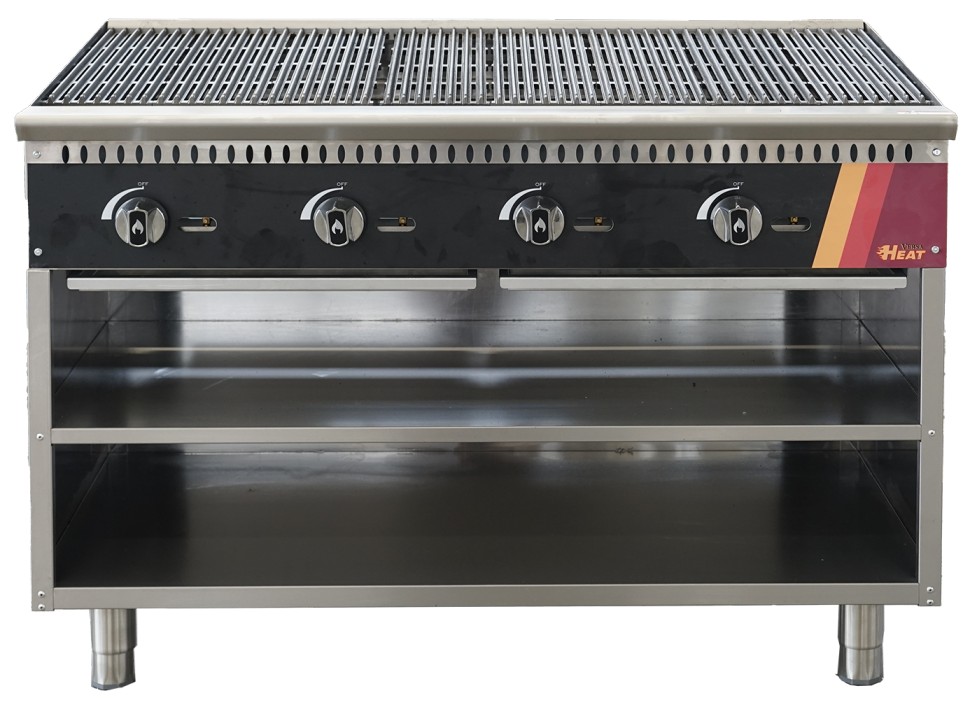

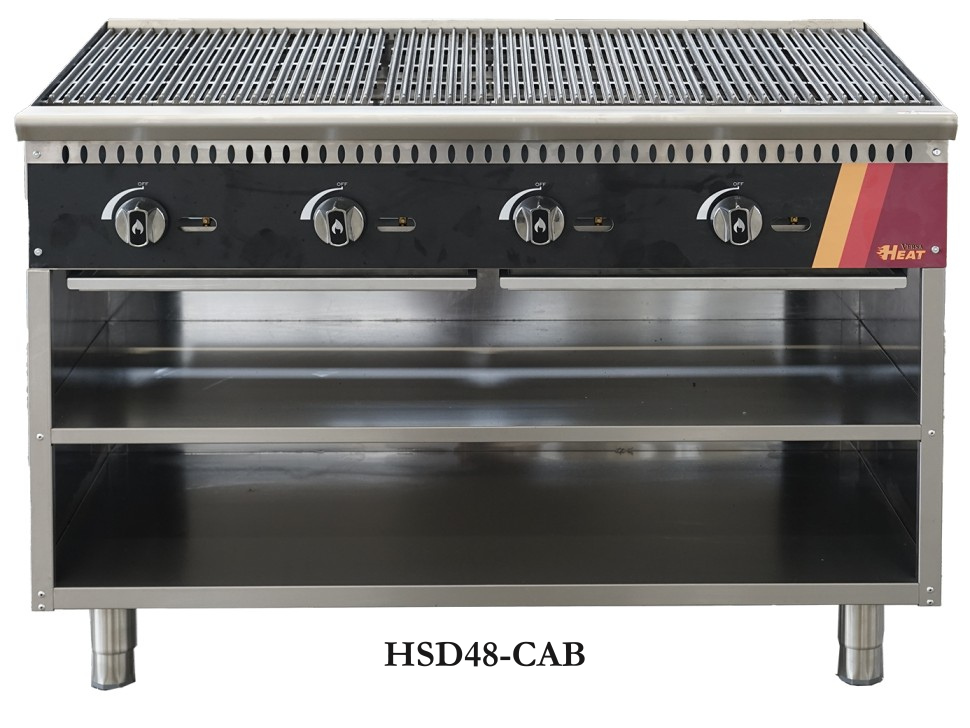

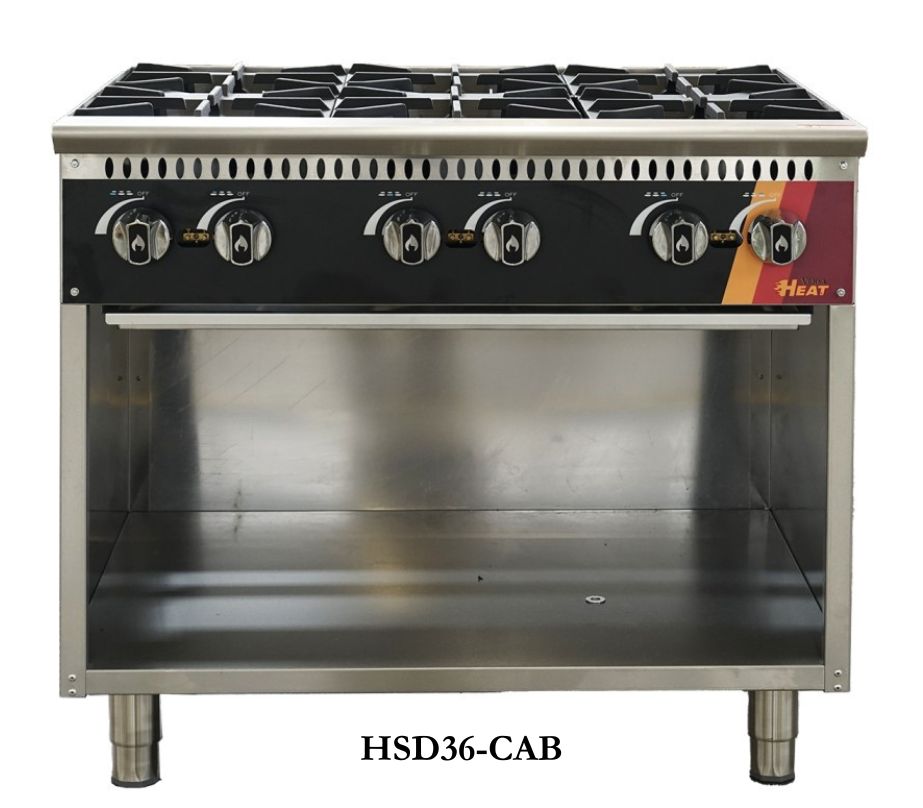

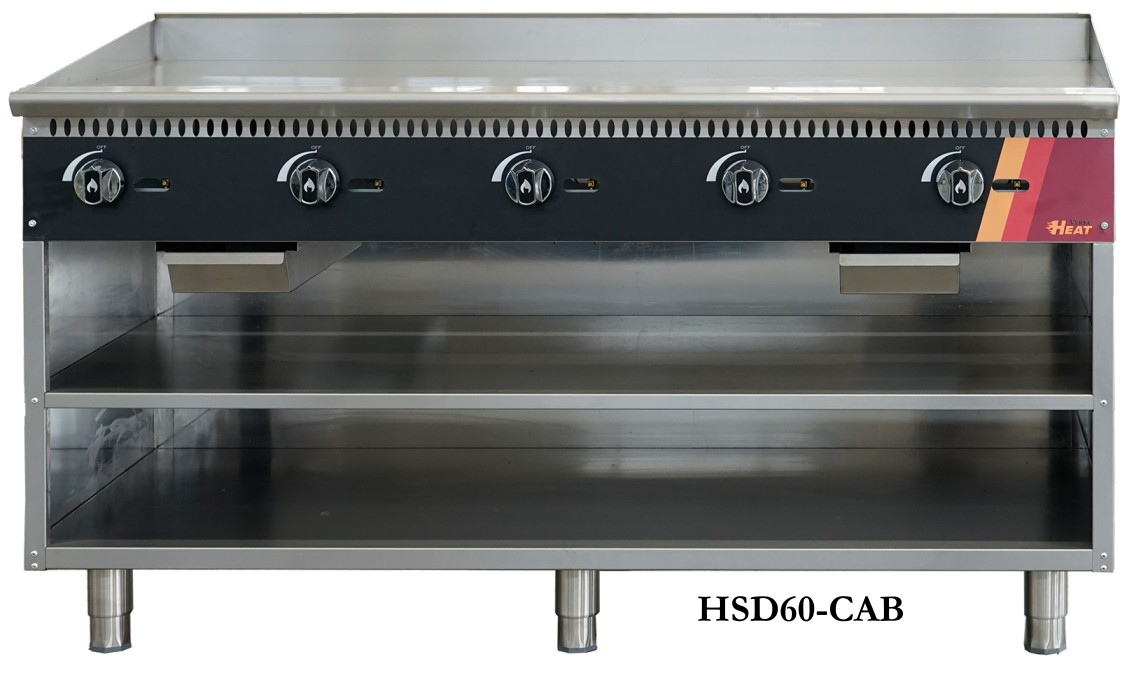

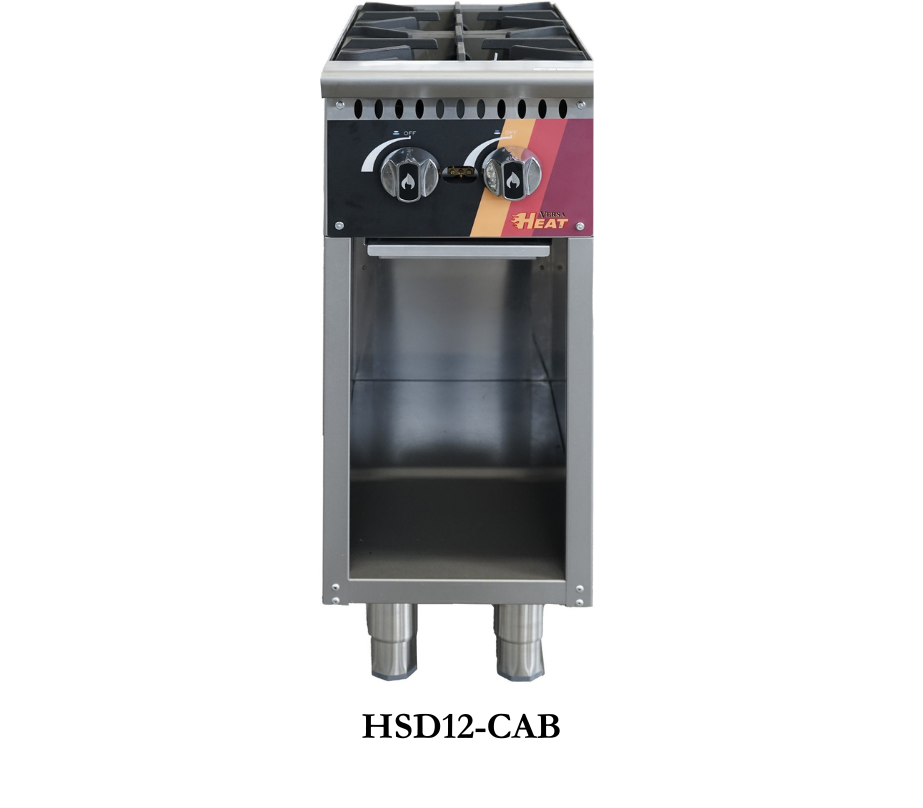

Cooktop Cabinet Bases
Product# HSD12-CABHSD24-CABHSD36-CABHSD48-CABHSD60-CAB
Size (inch) 12.1 x 25.2 x 24.924 x 25.2 x 24.936.2 x 25.5 x 24.9 47.6 x 25.2 x 24.960.2 x 24.2 x 24.9
Inner (inch) 12 x 24.3 x 17.523.9 x 24.3 x 17.535.8 x 24.3 x 17.547.3 x 24.3 x 17.559.9 x 24.3 x 17.5
Weight 30.8 lbs / 14 kg41.8 lbs / 19 kg49.1 lbs / 22.3 kg81lb / 36.8 kg99 lbs/ 45 kg
Shelf Load Cap 112 lbs / 56 kg175 lbs / 87.5 kg249 lbs / 124.5 kg316 lbs / 158 kg421 lbs / 210.5 kg
Steel 18-Gauge / 430SS18-Gauge / 430SS18-Gauge / 430SS18-Gauge / 430SS18-Gauge / 430SS
Shelves 11122
Number of Legs 44446
Specs pdfpdfpdfpdfpdf

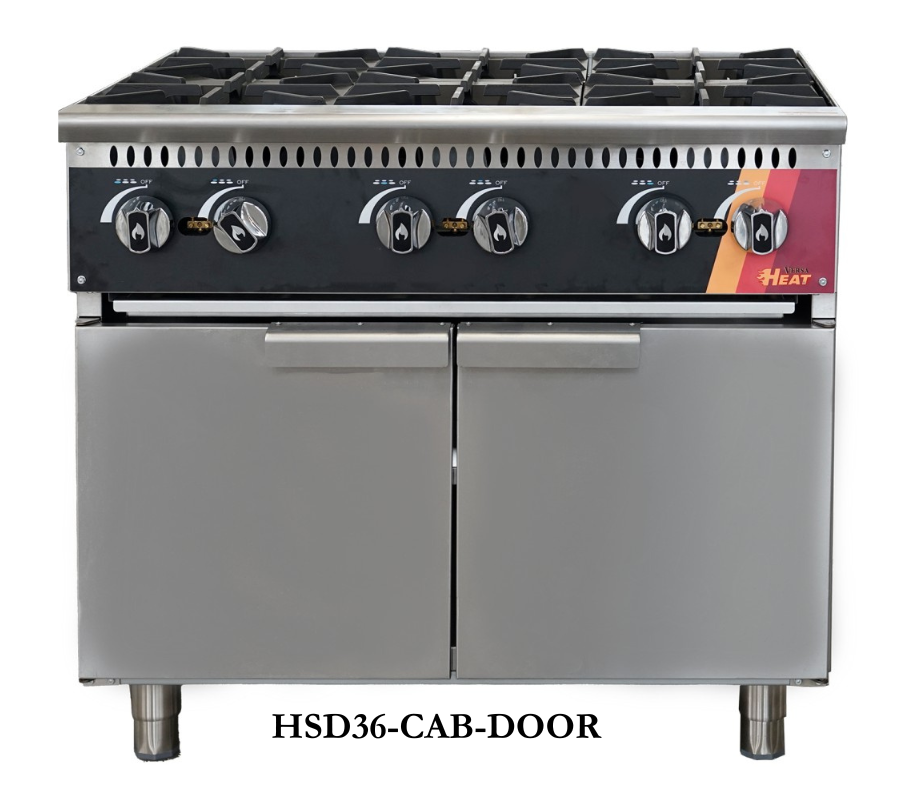

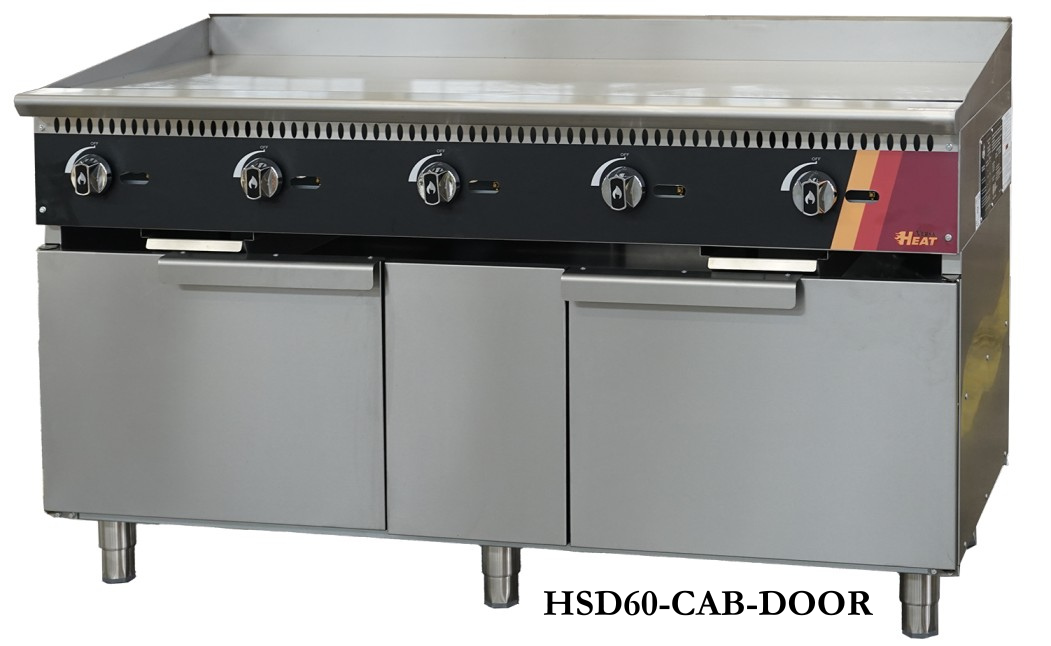

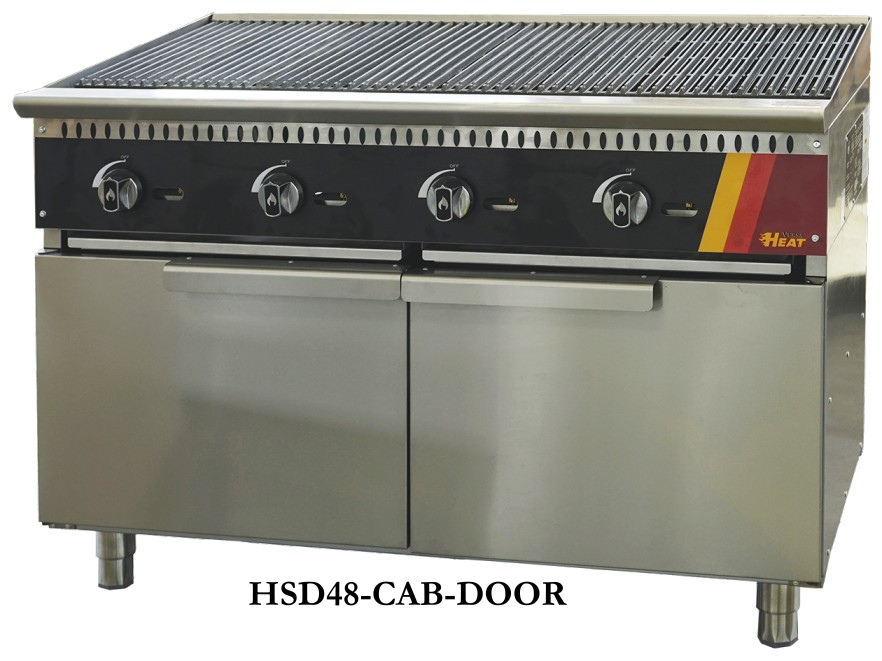

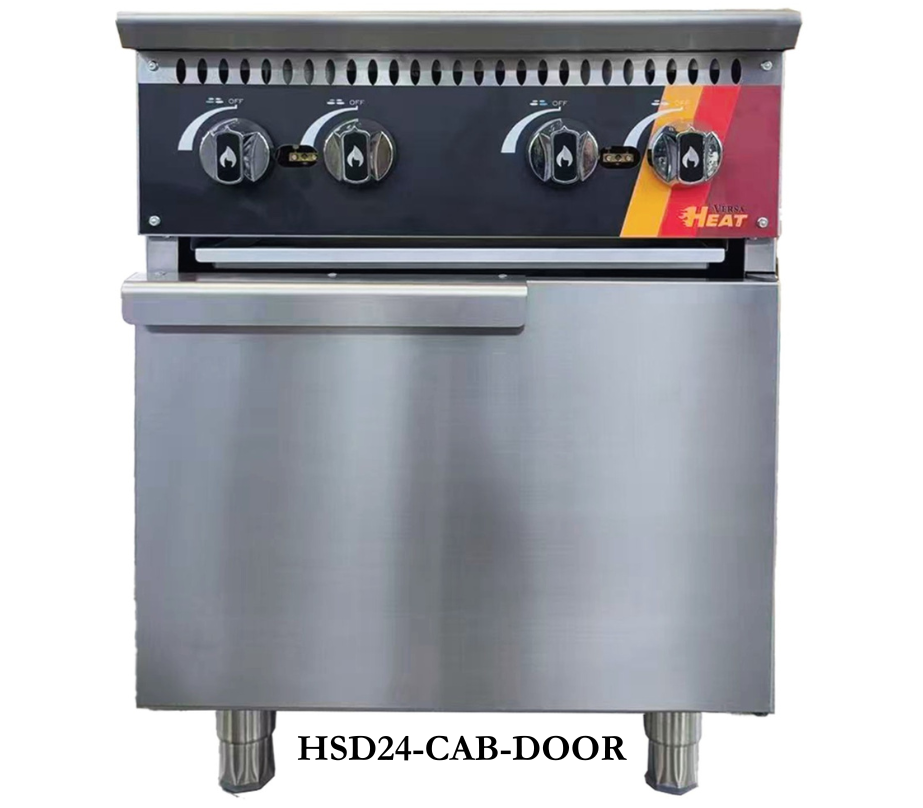

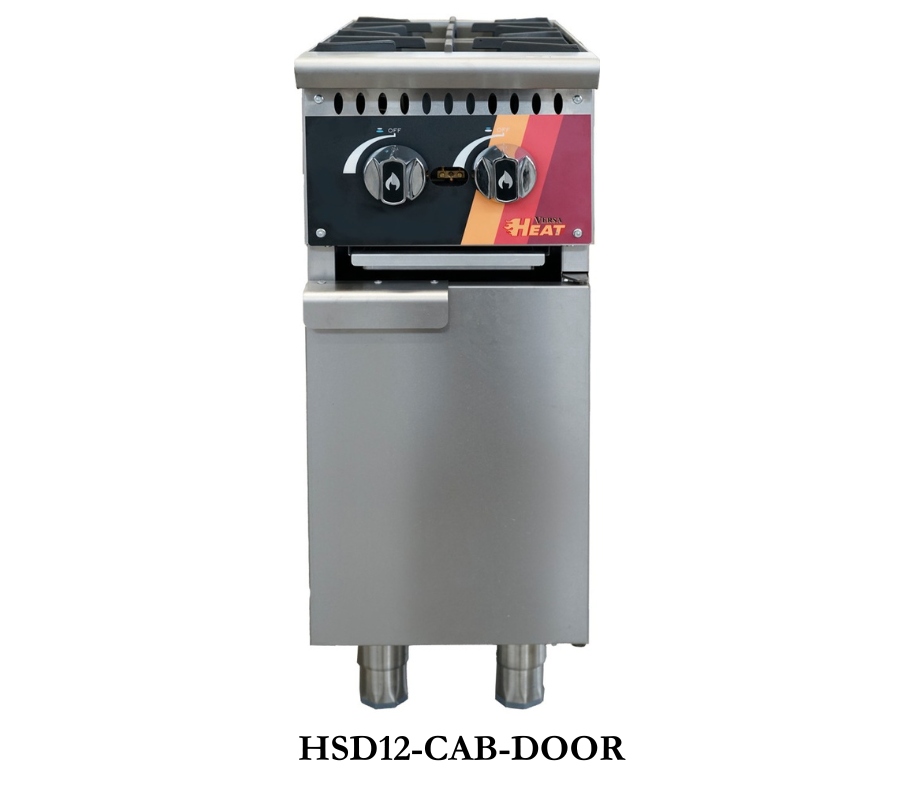

Cooktop Cabinet with Doors
Product# HSD12-CAB-DOORHSD24-CAB-DOORHSD36-CAB-DOORHSD48-CAB-DOORHSD60-CAB-DOOR
Size (inch) 12 x 26.6 x 24.924 x 26.7 x 24.936 x 26.8 x 24.947.6 x 26.6 x 24.960.2 x 26.7 x 24.9
Inner (inch) 12 x 24.3 x 17.523.9 x 24.3 x 17.535.8 x 24.3 x 17.547.3 x 24.3 x 17.559.9 x 24.3 x 17.5
Weight 14.8 lbs / 19 kg63.8 lbs / 29 kg84.92 lbs / 38.6 kg105.6 lbs / 48 kg127.6 lbs / 58 kg
Shelf Load Cap 112 lbs / 56 kg175 lbs / 87.5 kg249 lbs / 124.5 kg316 lbs / 158 kg421 lbs / 210 kg
Steel 18-Gauge / 430SS18-Gauge / 430SS18-Gauge / 430SS18-Gauge / 430SS18-Gauge / 430SS
Shelves 11122
Number of Legs 44466
Specs pdfpdfpdfpdfpdf
