Hot Plates
- Durable stainless steel structure that is corrosion resistant and easy to clean
- Simple and robust structure, easy to manipulate and maintain
- Highly efficient stainless steel burner
- Independent manual controls to save energy
- Available in natural gas & propane
- Adjustable stainless steel legs included
- 3/4" NPT on rear of appliance
ETL Listed
ETL Sanitation Listed
Product Specifications

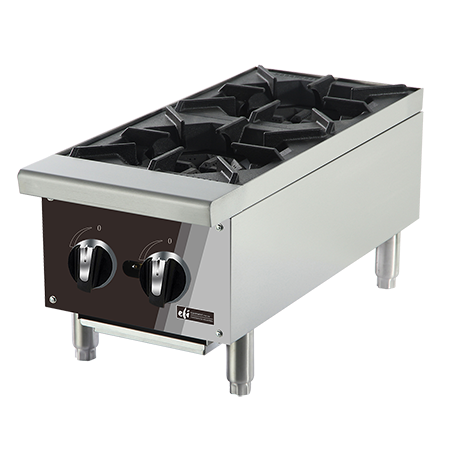

| Model | RCTHP-12-2-N | RCTHP-12-2-P | RCTHP-24-4-N | RCTHP-24-4-P | RCTHP-36-6-N | RCTHP-36-6-P |
| Burners | 2 | 4 | 4 | 3 | 6 | 6 |
| Ignition | Manual | Manual | Manual | Manual | Manual | Manual |
| BTU/h | 25,000 | 25,000 | 25,000 | 25,000 | 25,000 | 25,000 |
| Total BTU/h | 50,000 | 50,000 | 100,000 | 100,000 | 150,000 | 150,000 |
| Weight (lbs) | 55.1 | 55.1 | 97 | 97 | 136.7 | 136.7 |
| Specs |  | | | | | |

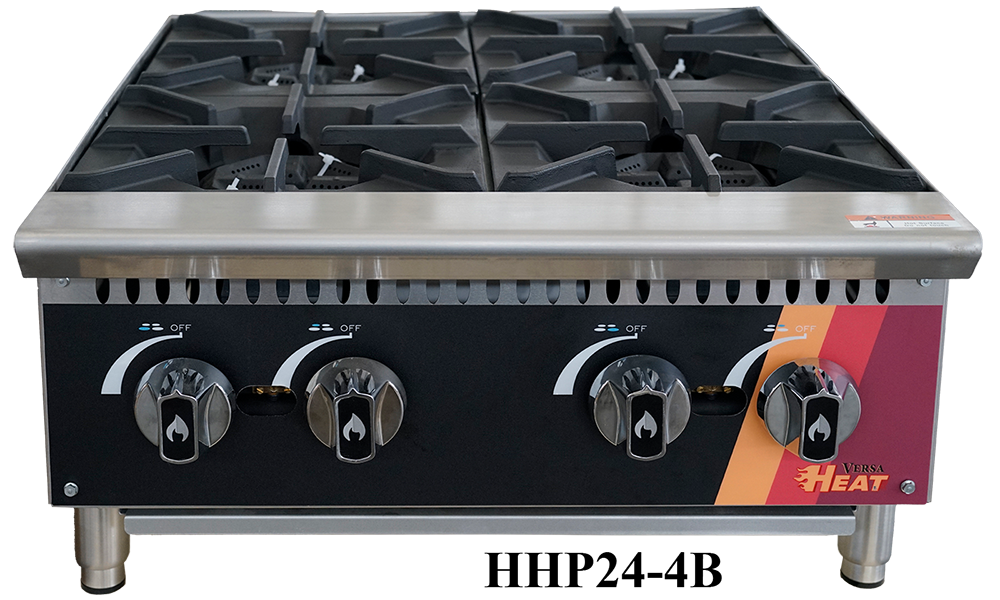

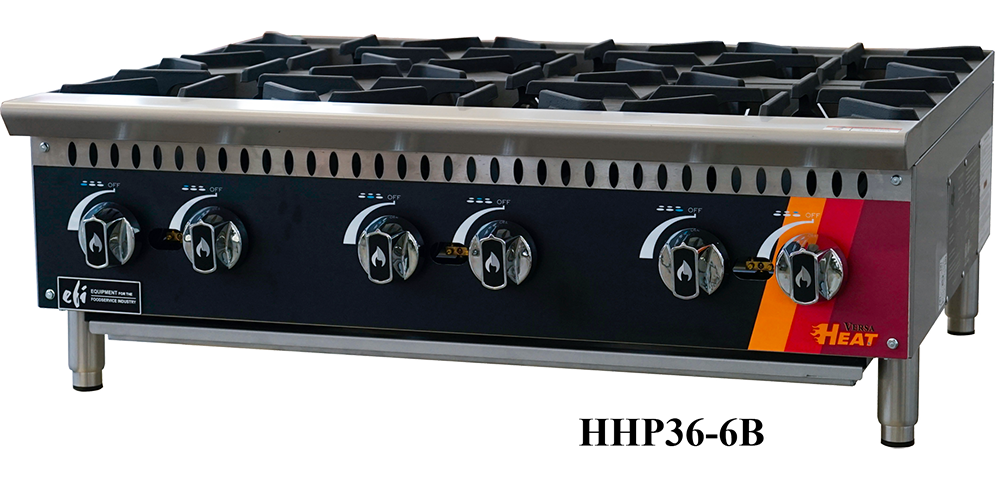

| Model | HHP12-2B-N | HHP12-2B-P | HHP24-4B-N | HHP24-4B-P | HHP36-6B-N | HHP36-6B-P |
| Size | 12”x 28.7”x 13” | 12”x 28.7”x 13” | 24”x 28.7”x 13” | 24”x 28.7”x 13” | 36”x 28.7”x 13” | 36”x 28.7”x 13” |
| Weight | 55 lbs / 25 kg | 55 lbs / 25 kg | 96 lbs / 43.5 kg | 96 lbs / 43.5 kg | 136 lbs / 62 kg | 136 lbs / 62 kg |
| Gas | Natrual Gas | Liquid Propane | Natrual Gas | Liquid Propane | Natrual Gas | Liquid Propane |
| # of Burners | 2 | 2 | 4 | 4 | 6 | 6 |
| Burner BTU/h | 26,000 | 26,000 | 26,000 | 26,000 | 26,000 | 26,000 |
| Total BTU/h | 52,000 | 52,000 | 104,000 | 104,000 | 156,000 | 156,000 |
| Specs | | | | | | |
| Drawings | | | | | | |

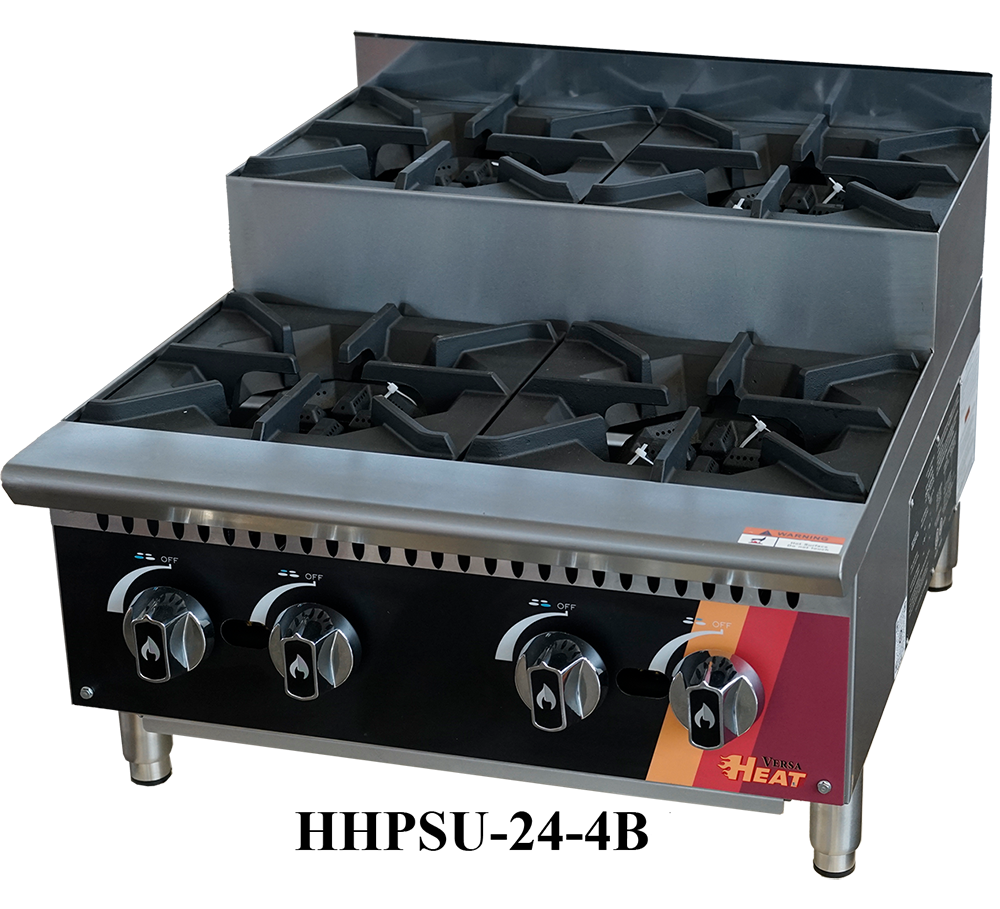

| Model | HHPSU-12-2B-N | HHPSU-12-2B-P | HHPSU-24-4B-N | HHPSU-24-4B-P | HHPSU-36-6B-N | HHPSU-36-6B-P |
| Size | 12”x 28.7”x 18.8” | 12”x 28.7”x 18.8” | 24”x 28.7”x 18.8” | 24”x 28.7”x 18.8” | 36”x 28.7”x 18.8” | 36”x 28.7”x 18.8” |
| Weight | 62 lbs / 28 kg | 62 lbs / 28 kg | 107 lbs / 49 kg | 107 lbs / 49 kg | 155 lbs / 71 kg | 155 lbs / 71 kg |
| Gas | Natrual Gas | Liquid Propane | Natrual Gas | Liquid Propane | Natrual Gas | Liquid Propane |
| # of Burners | 2 | 2 | 4 | 4 | 6 | 6 |
| Burner BTU/h | 26,000 | 26,000 | 26,000 | 26,000 | 26,000 | 26,000 |
| Total BTU/h | 52,000 | 52,000 | 104,000 | 104,000 | 156,000 | 156,000 |
| Specs | | | | | | |
| Drawings | | | | | | |

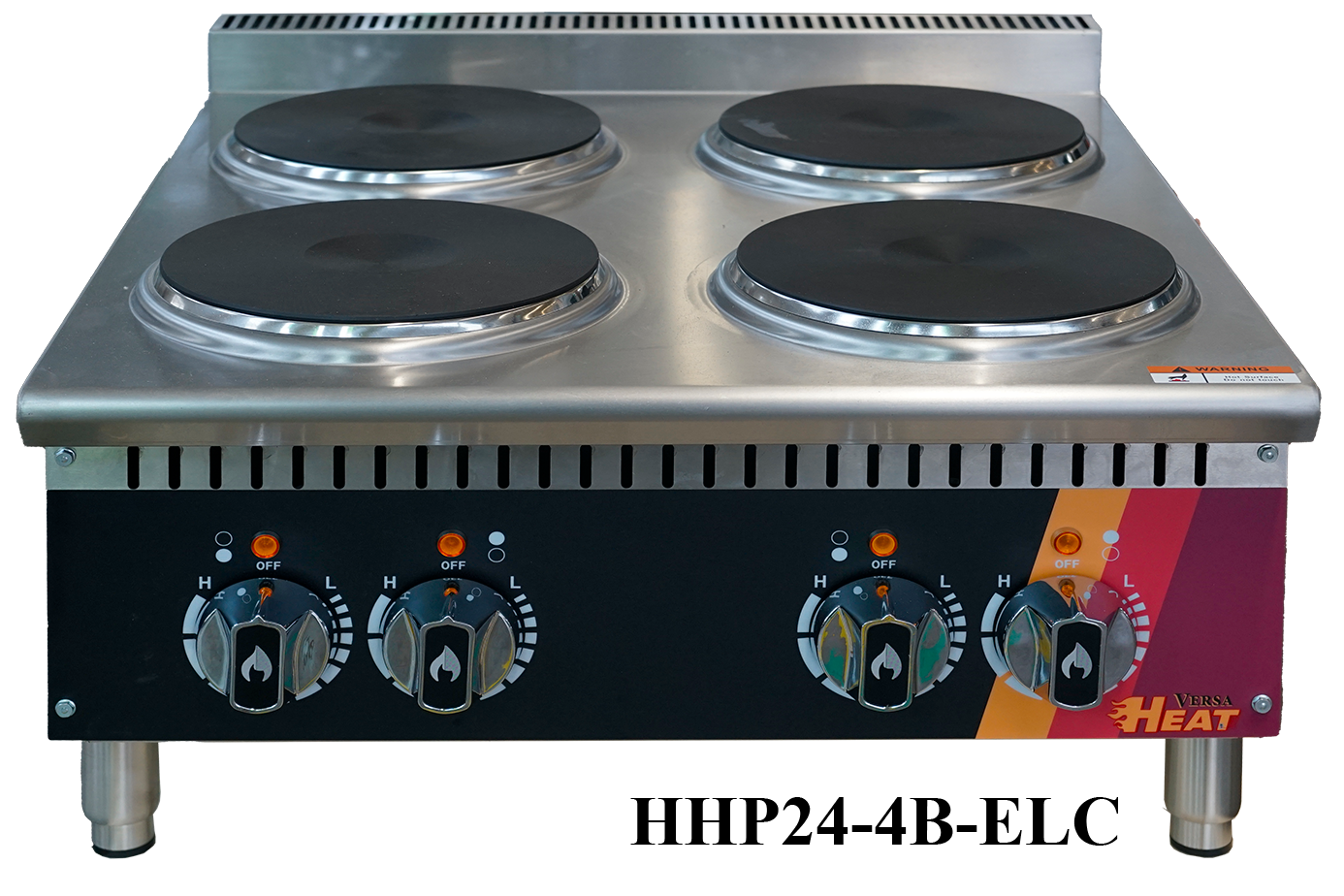

| Model | HHP15-1B-ELC | HHP15-2B-ELC | HHP24-4B-ELC | HHP36-6B-ELC |
| Size | 15”x 17.9”x 14.8” | 15”x 29.6”x 14.8” | 24”x 29.6”x 14.8” | 36”x 29.6”x 14.8” |
| Weight | 31 lbs / 14 kg | 47 lbs / 21.5 kg | 86 lbs / 39 kg | 132 lbs / 60 kg |
| # of Burners | 1 | 2 | 4 | 6 |
| Power | Electic | Electic | Electic | Electic |
| Watts/ Amps | 2000 / 8.3 | 4000 / 16.7 | 8000 / 16.6~33.3 | 12000 / 25~50 |
| Volts | 208V/1P | 208V/1P | 208V/3P | 208V/3P |
| Plug | NEMA 6-15P | NEMA 6-30P | Junction Box | Junction Box |
| Specs | | | | |
| Drawings | | | | |
- 1 year parts and labour
- For full warranty details https://www.efifoodequip.com/page/warranty_info
- Specifications subject to change without notice.
