Cooktops

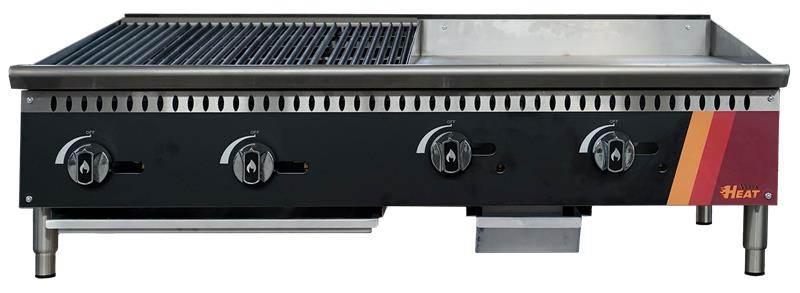

Model : HCT48 SERIES
- 48”width combination cooktop
- Combination of 24” Griddle,
- 24” Charbroiler or 24” Hot plate in one appliance
- Standing pilot ignition system
- 25,000BTU/h per hot plate burner
- 30,000BTU/h per griddle burner
- 35,000BTU/h per charbroiler
- Adjustable pilot light lit from the front
- Cool-to-the-touch front S/S edge
- All stainless-steel cabinets
- Adjustable stainless steel non-skid feet
- Shipped standard with Natural gas or LP conversion kit included.
- Gas pressure regulator supplied with unit
- Stands & enclosed bases, with or with out doors available and sold sold separately
ETL Listed
ETL Sanitation Listed
NSF Certified
Product Specifications
| Product# | HCT48-24CH-24GM-N | HCT48-24CH-24GM-P | HCT48-24HP-24GM-N | HCT48-24HP-24GM-P | HCT48-24HP-24CH-N | HCT48-24HP-24CH-P |
| Width | 48.0" | 48.0" | 48.0" | 48.0" | 48.0" | 48.0" |
| Depth | 31.1" | 31.1" | 31.1" | 31.1" | 31.1" | 31.1" |
| Height | 15.6" | 15.6" | 15.6" | 15.6" | 15.6" | 15.6" |
| Weight(lbs) | 250.8 | 250.8 | 319.0 | 319.0 | 250.8 | 250.8 |
| Gas Type | Natural Gas | Liquid Propane | Natural Gas | Liquid Propane | Natural Gas | Liquid Propane |
| # of Hot Plates | - | - | 4 | 4 | 4 | 4 |
| BTU per Hot Plate | - | - | 25000 | 25000 | 25000 | 25000 |
| Charboiler Size | 24” | 24” | - | - | 24” | 24” |
| Charboiler BTU per 12” | 35000 | 35000 | - | - | 35000 | 35000 |
| Griddle Size | 24” | 24” | 24” | 24” | - | - |
| Griddle BTU per 12” | 30000 | 30000 | 30000 | 30000 | - | - |
| Total Unit BTU | 130000 | 130000 | 160000 | 160000 | 170000 | 170000 |
| Opertating Gas Pressure | 4.0” W.C | 10.0” W.C | 4.0” W.C | 10.0” W.C | 4.0” W.C | 10.0” W.C |
| Specs |  | | | | | |
| Drawings | | | | | | |
- 1 year parts and labour
- For full warranty details https://www.efifoodequip.com/page/warranty_info
- Specifications subject to change without notice.
