Cooktops

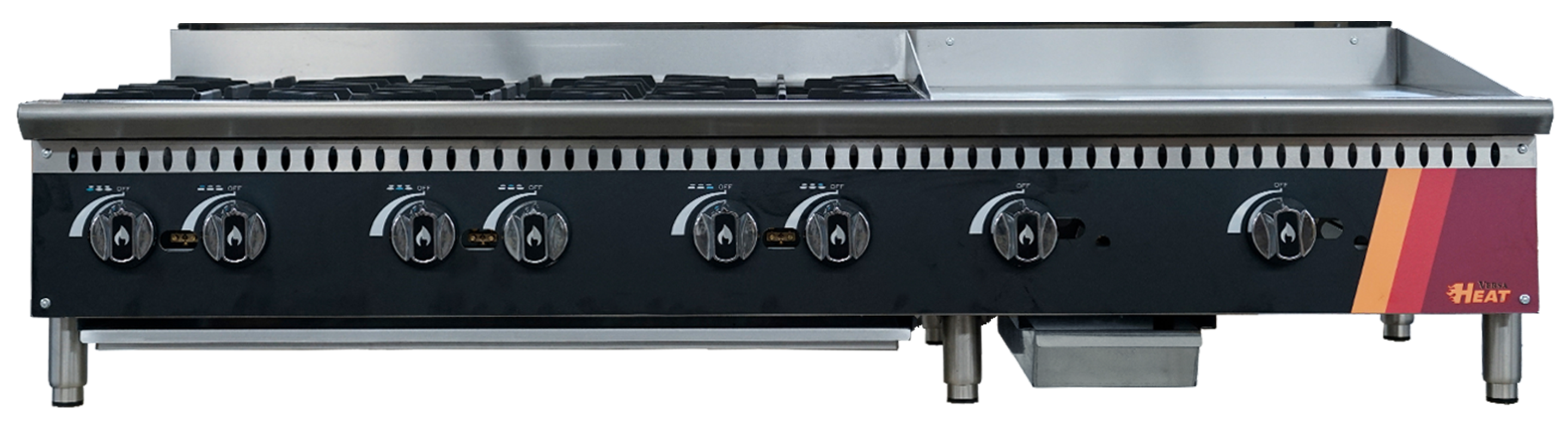

Model : HCT60 SERIES

  • 60”width combination cooktop • Combination of 24” Griddle,
  • 24” Charbroiler or 36” Hot plate in one appliance
  • Standing pilot ignition system
  • 25,000BTU/h per hot plate burner
  • 30,000BTU/h per griddle burner
  • 35,000BTU/h per charbroiler
  • Adjustable pilot light lit from the front
  • Cool-to-the-touch front S/S edge
  • All stainless-steel cabinets
  • Adjustable stainless steel non-skid feet
  • Shipped standard with Natural gas or LP conversion kit included.
  • Gas pressure regulator supplied with unit
  • Stands & enclosed bases, with or with out doors available and sold sold separately
ETL Listed
ETL Sanitation Listed
NSF Certified

Product Specifications
Product# HCT60-36HP-24GM-NHCT60-36HP-24GM-P HCT60-36HP-24CH-NHCT60-36HP-24CH-P
Width 60.2"60.2"60.2"60.2"
Depth 28.8"28.8"28.8"28.8"
Height 15.6"15.6"15.6"15.6"
Weight(lbs) 409.2409.2334.4 334.4
Gas Type Natural GasLiquid PropaneNatural GasLiquid Propane
# of Hot Plates 6666
BTU per Hot Plate 25000250002500025000
Charboiler Size --24”24”
Charboiler BTU per 12” --3500035000
Griddle Size 24”24”--
Griddle BTU per 12” 3000030000--
Total Unit BTU 210000210000220000220000
Opertating Gas Pressure 4.0” W.C10.0” W.C4.0” W.C10.0” W.C
Specs pdfpdfpdfpdf
Drawings pdfpdfpdfpdf
