Cooktops
Model : HCT36 SERIES

  • 36”width combination cooktop
  • Combination of a 12” or 24” Griddle,12” Charbroiler or 12” Hot plate in one appliance
  • Standing pilot ignition system
  • 25,000BTU/h per hot plate burner
  • 30,000BTU/h per griddle burner
  • 35,000BTU/h per charbroiler
  • Adjustable pilot light lit from the front
  • Cool-to-the-touch front S/S edge
  • All stainless-steel cabinets
  • Adjustable stainless steel non-skid feet
  • Shipped standard with Natural gas or LP conversion kit included.
  • Gas pressure regulator supplied with unit
  • Stands & enclosed bases, with or with out doors available and sold sold separately
ETL Listed
ETL Sanitation Listed
NSF Certified

Product Specifications

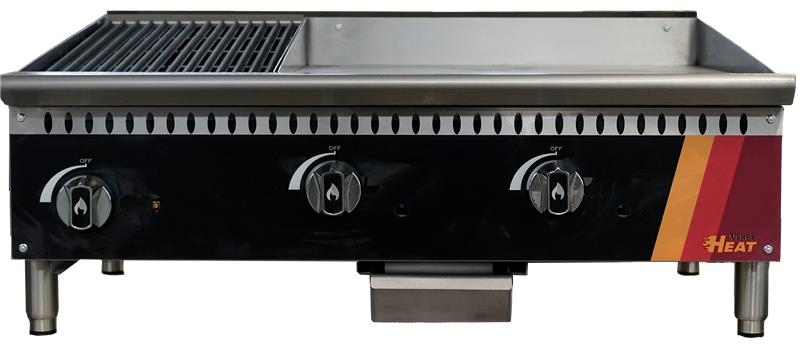

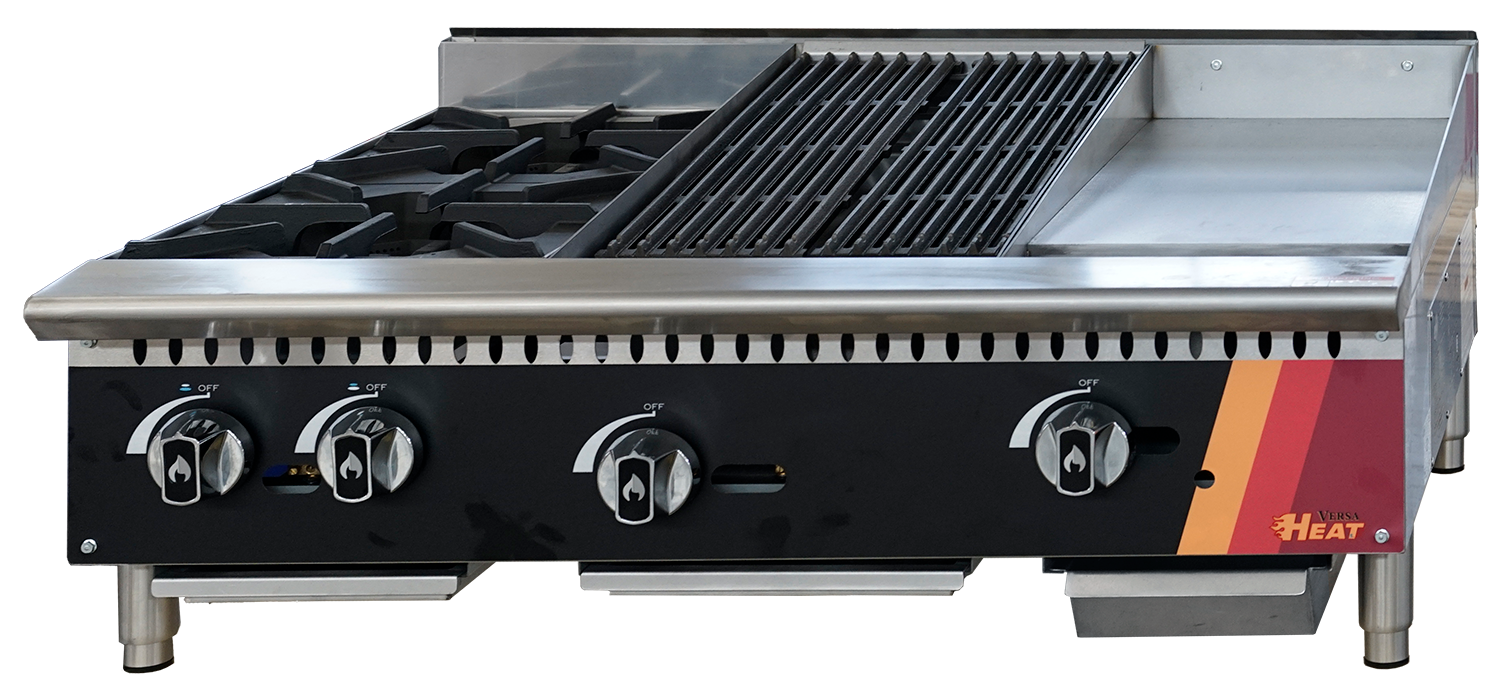

Product# HCT36-12CH-24GM-NHCT36-12CH-24GM-PHCT36-12HP-24GM-NHCT36-12HP-24GM-PHCT36-12HP-CH-GMN HCT36-12HP-CH-GMP
Width 36.0"36.0"36.0"36.0"36.0"36.0"
Depth 31.1"31.1"31.1"31.1"31.1"31.1"
Height 15.6"15.6"15.6"15.6"15.6"15.6"
Weight(lbs) 204.6204.6198.0198.0155.1155.1
Gas Type Natural GasLiquid PropaneNatural GasLiquid PropaneNatural GasLiquid Propane
# of Hot Plates --2222
BTU per Hot Plate --25000250002500025000
Charboiler Size 12”12”--12”12”
Charboiler BTU per 12” 3500035000--3500035000
Griddle Size 24”24”24”24”12” 12”
Griddle BTU per 12” 300003000030000300003000030000
Total Unit BTU 9500095000110000110000115000115000
Opertating Gas Pressure 4.0” W.C10.0” W.C4.0” W.C10.0” W.C4.0” W.C10.0” W.C
Specs pdfpdfpdfpdfpdfpdf
Drawings pdfpdfpdfpdfpdfpdf
