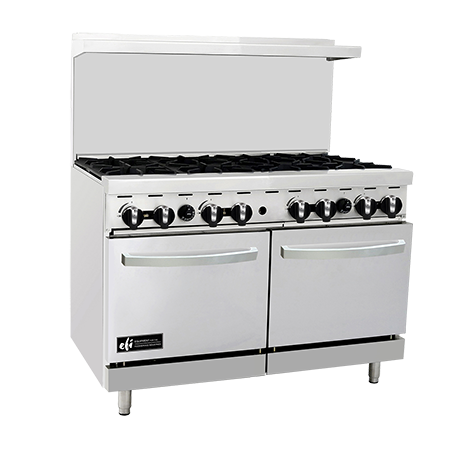

Oven Ranges 60
- Stainless steel front, back, sides, kick plate including back guard and high shelf
- Heavy duty lift-off cast iron burners rated at 25,000 BTU/hr
- 12” x 12” cast iron top grates
- 3/4” thick polished steel griddle plate on applicable models
- Grease trough on griddle models
- Oven size is 261/2 x 26 x 14”
- Oven burner rated at 27,000 BTU/hr
- Oven pilot with 100% safety shut off
- Stainless steel oven burners and pilots
- Multiple position oven rack guides
- One chrome rack per oven
- Additional racks available
- Manifold operating pressure
- 5”WC/ 11mbar natural gas
- 10”WC/ 25mbar propane
- Gas hose kit available for HRG Series: SIF-HG-4D-48SEL
- Caster sets available for HRG Series: HA-CAST-RANGE
ETL Listed
ETL Sanitation Listed
NSF Certified
Product Specifications
| Product# | RCTRS-10B-N | RCTRS-10B-P | RCTRS-12G-8B-N | RCTRS-12G-8B-P | RCTRS-24G-6B-N | RCTRS-24G-6B-P | RCTRS-36G-4B-P | RCTRS-48G-2B-P | RCTRS-8B-12G-N | RCTRS-8B-12G-P | RCTRS-2B-48G-N | RCTRS-2B-48G-P |
| Description | 10 Burners | 10 Burners | 12 Griddle and 8 Burners | 12 Griddle and 8 Burners | 24 Griddle and 6 Burners | 24 Griddle and 6 Burners | 36 Griddle and 4 Burners | 48 Griddle and 2 Burners | 8 Burners and 12 Griddle | 8 Burners and 12 Griddle | 2 Burners and 48 Griddle | 2 Burners and 48 Griddle |
| Total B.T.U./h | 304,000 | 284,000 | 275,000 | 259,000 | 252,000 | 240,000 | 221,000 | 202,000 | 275,000 | 259,000 | 206,000 | 202,000 |
| Shipping Weight Lbs/kg | 836/380 | 836/380 | 895/407 | 895/407 | 898/408 | 898/408 | 915/416 | 946/430 | 895/407 | 895/407 | 946/430 | 946/430 |
| Specs |  | | | | | | | | | | | |
| Model: | HRG60-10B-N | HRG60-10B-P | HRG60-24CH-6B-N | HRG60-24CH-6B-P | HRG60-24GM-6B-N | HRG60-24GM-6B-P | HRG60-24GT-6B-N | HRG60-24GT-6B-P |
| Width | 60" | 60" | 60" | 60" | 60" | 60" | 60" | 60" |
| Depth | 31.4" | 31.4" | 31.4" | 31.4" | 31.4" | 31.4" | 31.4" | 31.4" |
| Height | 60.2" | 60.2" | 60.2" | 60.2" | 60.2" | 60.2" | 60.2" | 60.2" |
| Weight (lbs) | 620.4 | 620.4 | 635.8 | 635.8 | 673.2 | 673.2 | 708.4 | 708.4 |
| Gas Type | Natural Gas | Liquid Propane | Natural Gas | Liquid Propane | Natural Gas | Liquid Propane | Natural Gas | Liquid Propane |
| # of Ovens | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Racks per Oven | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Oven BTU | 30000 | 28000 | 30000 | 28000 | 30000 | 28000 | 30000 | 28000 |
| TEMP RANGE °C | 93°C to 260°C | 93°C to 260°C | 93°C to 260°C | 93°C to 260°C | 93°C to 260°C | 93°C to 260°C | 93°C to 260°C | 93°C to 260°C |
| TEMP RANGE °F | 200°F to 500°F | 200°F to 500°F | 200°F to 500°F | 200°F to 500°F | 200°F to 500°F | 200°F to 500°F | 200°F to 500°F | 200°F to 500°F |
| Total Unit BTU | 366000 | 326000 | 316000 | 288000 | 316000 | 272000 | 306000 | 272000 |
| Opertating Gas Pressure | 5.0” W.C | 10.0” W.C | 5.0” W.C | 10.0” W.C | 5.0” W.C | 10.0” W.C | 5.0” W.C | 10.0” W.C |
| # of Burners | - | - | - | - | 60000 | 60000 | 60000 | 60000 |
| Burner BTU per 12” | 30000 | 30000 | 30000 | 30000 | 30000 | 30000 | 30000 | 30000 |
| Total Burner BTU | 300000 | 300000 | 180000 | 180000 | 180000 | 180000 | 180000 | 180000 |
| Charboiler Width | - | - | 24” | 24” | - | - | - | - |
| Charboiler BTU per 12” | - | - | 35000 | 35000 | - | - | - | - |
| Total Charboiler BTU | - | - | 70000 | 70000 | - | - | - | - |
| Griddle Width | - | - | - | - | 24” | 24” | 24” | 24” |
| Griddle BTU per 12” | - | - | - | - | 30000 | 30000 | 30000 | 30000 |
| Total Griddle BTU | - | - | - | - | 60000 | 60000 | 60000 | 60000 |
| Specs | | | | | | | | |
| Drawings | | | | | | | | |
- 1 year parts and labour
- For full warranty details https://www.efifoodequip.com/page/warranty_info
- Specifications subject to change without notice.
