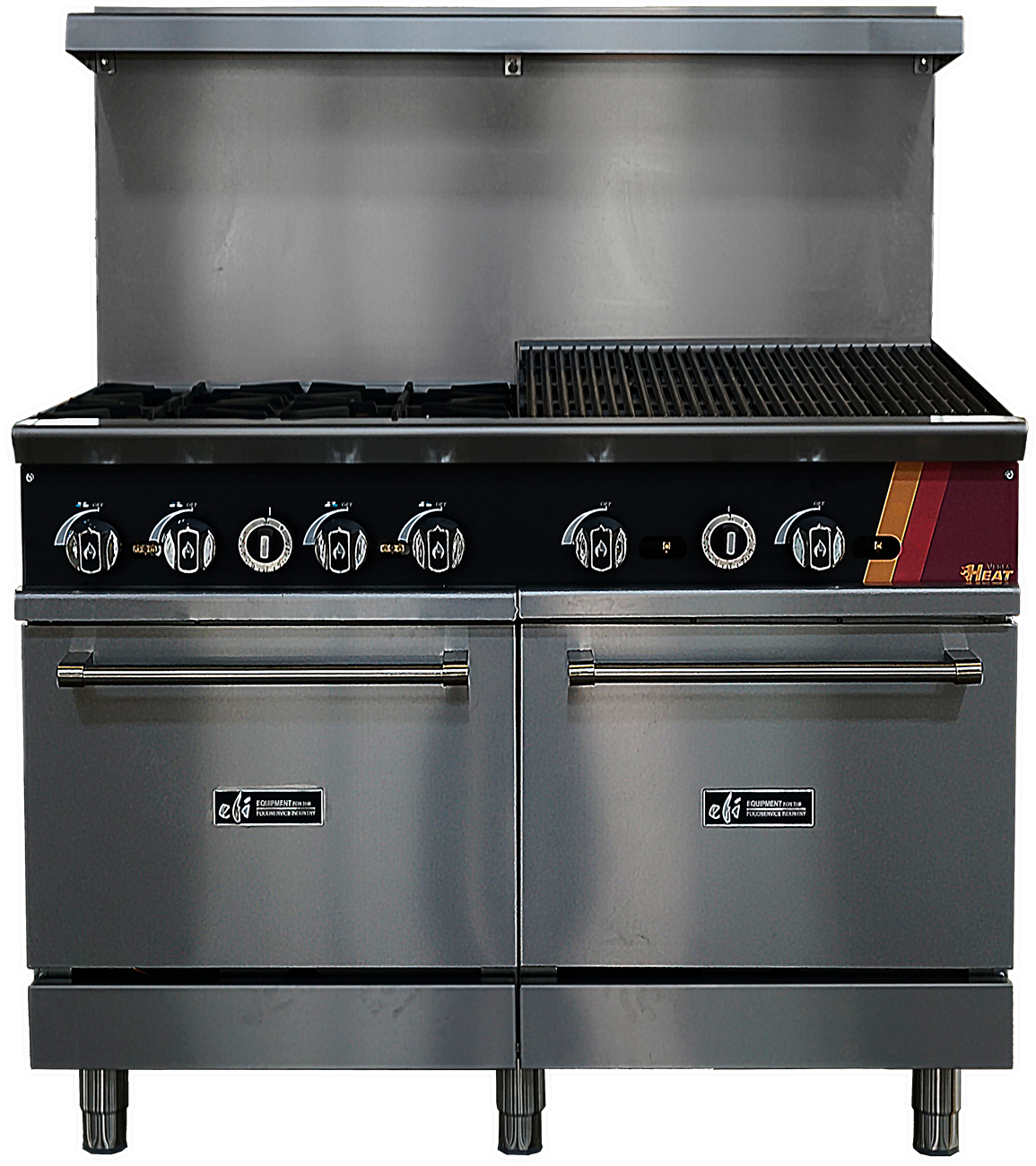

Oven ranges 48
- Stainless steel front, back, sides, kick plate including back guard and high shelf
- Heavy duty lift-off cast iron burners rated at 25,000 BTU/hr
- 12” x 12” cast iron top grates
- 3/4” thick polished steel griddle plate on applicable models
- Grease trough on griddle models
- Oven size is 20 x 26 x 14”
- Oven burner rated at 27,000 BTU/hr
- Oven pilot with 100% safety shut off
- Stainless steel oven burners and pilots
- Multiple position oven rack guides
- One chrome rack per oven
- Additional racks available
- Manifold operating pressure
- 5”WC/ 11mbar natural gas
- 10”WC/ 25mbar propane
- Gas hose kit available for HRG Series: SIF-HG-4D-48SEL
- Caster sets available for HRG Series: HA-CAST-RANGE
ETL Listed
ETL Sanitation Listed
NSF Certified
Product Specifications
| Product# | RCTRS-8B-N | RCTRS-8B-P | RCTRS-12G-6B-N | RCTRS-12G-6B-P | RCTRS-24G-4B-P | RCTRS-36G-2B-N | RCTRS-36G-2B-P | RCTRS-6B-12G-N | RCTRS-6B-12G-P | RCTRS-4B-24G-N | RCTRS-4B-24G-P | RCTRS-2B-36G-N | RCTRS-2B-36G-P |
| Description | 6 Burners | 6 Burners | 12 | 12 | 24 | 36 | 36 | 6 Burners and 12 | 6 Burners and 12 | 4 Burners and 24 | 4 Burners and 24 | 2 Burners and 36 | 2 Burners and 36 |
| Total B.T.U./h | 248,000 | 232,000 | 219,000 | 207,000 | 188,000 | 173,000 | 169,000 | 219,000 | 207,000 | 196,000 | 188,000 | 173,000 | 169,000 |
| Shipping Weight Lbs/kg | 719/327 | 719/327 | 757/344 | 757/344 | 783/356 | 810/368 | 810/368 | 757/344 | 757/344 | 783/356 | 783/356 | 810/368 | 810/368 |
| Specs |  | | | | | | | | | | | | |
| Model | HRG48-24CH-4B-N | HRG48-24CH-4B-P | HRG48-24GM-4B-N | HRG48-24GM-4B-P | HRG48-24GT-4B-N | HRG48-24GT-4B-P | HRG48-8B-N | HRG48-8B-P |
| Width | 48.0" | 48.0" | 48.0" | 48.0" | 48.0" | 48.0" | 48.0" | 48.0" |
| Depth | 31.4" | 31.4" | 31.4" | 31.4" | 31.4" | 31.4" | 31.4" | 31.4" |
| Height | 60.0" | 60.0" | 60.0" | 60.0" | 60.0" | 60.0" | 60.0" | 60.0" |
| Weight (lbs) | 536.8 | 536.8 | 578.6 | 578.6 | 578.6 | 578.6 | 523.6 | 523.6 |
| Gas Type | Natural Gas | Liquid Propane | Natural Gas | Liquid Propane | Natural Gas | Liquid Propane | Natural Gas | Liquid Propane |
| # of Ovens | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Racks per Oven | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Oven BTU | 30000 | 28000 | 30000 | 28000 | 30000 | 28000 | 30000 | 28000 |
| TEMP RANGE °C | 93°C to 260°C | 93°C to 260°C | 93°C to 260°C | 93°C to 260°C | 93°C to 260°C | 93°C to 260°C | 93°C to 260°C | 93°C to 260°C |
| TEMP RANGE °F | 200°F to 500°F | 200°F to 500°F | 200°F to 500°F | 200°F to 500°F | 200°F to 500°F | 200°F to 500°F | 200°F to 500°F | 200°F to 500°F |
| TOTAL UNIT BTU | 246000 | 234000 | 246000 | 218000 | 246000 | 218000 | 306000 | 272000 |
| Opertating Gas Pressure | 5.0” W.C | 10.0” W.C | 5.0” W.C | 10.0” W.C | 5.0” W.C | 10.0” W.C | 5.0” W.C | 10.0” W.C |
| # of Burners | 4 | 4 | 4 | 4 | 4 | 4 | 8 | 8 |
| Burner BTU per 12” | 30000 | 30000 | 30000 | 30000 | 30000 | 30000 | 30000 | 30000 |
| Total Burner BTU | 120000 | 120000 | 120000 | 120000 | 120000 | 120000 | 240000 | 240000 |
| Charboiler Width | 24” | 24” | - | - | - | - | - | - |
| Charboiler BTU per 12” | 35000 | 35000 | - | - | - | - | - | - |
| Total Charboiler BTU | 70000 | 70000 | - | - | - | - | - | - |
| Griddle Width | - | - | 24” | 24” | 24” | 24” | - | - |
| Griddle BTU per 12” | - | - | 30000 | 30000 | 30000 | 30000 | - | - |
| Total Griddle BTU | - | - | 60000 | 60000 | 60000 | 60000 | - | - |
| Specs | | | | | | | | |
| Drawings | | | | | | | | |
- 1 year parts and labour
- For full warranty details https://www.efifoodequip.com/page/warranty_info
- Specifications subject to change without notice.
