Oven Ranges 24

  • Sturdy construction for demanding commercial cooking applications
  • User-friendly operation with simple controls
  • Multiple function combinations: Griddle (manual control), Charbroiled, & Hot plate on top with a Static oven(s) on the bottom
  • 30,000 BTU per Top burner
  • 35,000 BTU per Charbroiler at 12"
  • 30,000 BTU per Manual Griddle at 12"
  • 33,000 BTU per Static oven
  • Oven thermostat adjusts from 200°F to 500°F (93°C to 232°C)
  • Stainless steel front and back riser and lift-off high shelf
  • Oven interior side guides & bottom porcelain-coated
  • Shipped standard, Natural gas or LP conversion kit included
  • Gas pressure regulator is supplied with the unit
  • Gas hose kit available for HRG Series: SIF-HG-4D-48SEL
  • Caster sets available for HRG Series: HA-CAST-RANGE
ETL Listed
ETL Sanitation Listed
NSF Certified

Product Specifications

Oven Ranges 24
Model RCTRS-24G-P
Description 24" Griddle
Total B.T.U./h 72,000
Shipping Weight Lbs/kg 462/210
Specspdf

24 Gas Range Series

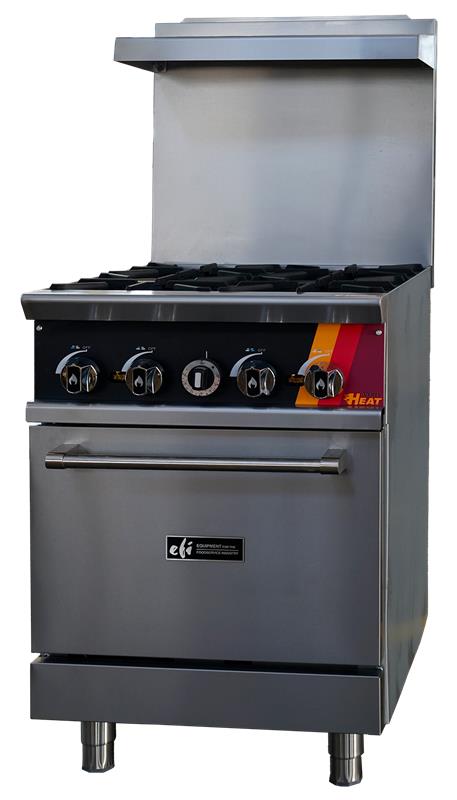

Model HRG24-4B-N
Width 24.0"
Depth 31.4"
Height 60.2"
Weight (lbs) 268.4
Gas Type Natural Gas
# of Ovens 1
# of Oven Racks 1
Oven BTU 30000
TEMP RANGE °C 93°C to 260°C
TEMP RANGE °F 200°F to 500°F
TOTAL UNIT BTU 153000
Opertating Gas Pressure 5.0” W.C
# of Burners 4
Burner BTU per 12” 30000
Total Burner BTU 120000
Charboiler Width -
Charboiler BTU per 12” -
Total Charboiler BTU -
Griddle Width -
Griddle BTU per 12” -
Total Griddle BTU -
Specspdf
Drawingspdf
Model HRG24-4B-P
Width 24.0"
Depth 31.4"
Height 60.2"
Weight (lbs) 268.4
Gas Type Liquid Propane
# of Ovens 1
# of Oven Racks 1
Oven BTU 28000
TEMP RANGE °C 93°C to 260°C
TEMP RANGE °F 200°F to 500°F
TOTAL UNIT BTU 136000
Opertating Gas Pressure 10.0” W.C
# of Burners 4
Burner BTU per 12” 30000
Total Burner BTU 120000
Charboiler Width -
Charboiler BTU per 12” -
Total Charboiler BTU -
Griddle Width -
Griddle BTU per 12” -
Total Griddle BTU -
Specspdf
Drawingspdf
Model HRG24-12CH-2B-N
Width 24.0"
Depth 31.4"
Height 60.2"
Weight (lbs) 288.2
Gas Type Natural Gas
# of Ovens 1
# of Oven Racks 1
Oven BTU 30000
TEMP RANGE °C 93°C to 260°C
TEMP RANGE °F 200°F to 500°F
TOTAL UNIT BTU 128000
Opertating Gas Pressure 5.0” W.C
# of Burners 0
Burner BTU per 12” -
Total Burner BTU -
Charboiler Width -
Charboiler BTU per 12” -
Total Charboiler BTU -
Griddle Width 24”
Griddle BTU per 12” 30000
Total Griddle BTU 60000
Specspdf
Drawingspdf
Model HRG24-12CH-2B-P
Width 24.0"
Depth 31.4"
Height 60.2"
Weight (lbs) 288.2
Gas Type Liquid Propane
# of Ovens 1
# of Oven Racks 1
Oven BTU 28000
TEMP RANGE °C 93°C to 260°C
TEMP RANGE °F 200°F to 500°F
TOTAL UNIT BTU 117000
Opertating Gas Pressure 10.0” W.C
# of Burners 0
Burner BTU per 12” -
Total Burner BTU -
Charboiler Width -
Charboiler BTU per 12” -
Total Charboiler BTU -
Griddle Width 24”
Griddle BTU per 12” 30000
Total Griddle BTU 60000
Specspdf
Drawingspdf
Model HRG24-24GM-N
Width 24.0"
Depth 31.4"
Height 60.2"
Weight (lbs) 341.0
Gas Type Natural Gas
# of Ovens 1
# of Oven Racks 1
Oven BTU 30000
TEMP RANGE °C 93°C to 260°C
TEMP RANGE °F 200°F to 500°F
TOTAL UNIT BTU 93000
Opertating Gas Pressure 5.0” W.C
# of Burners 0
Burner BTU per 12” -
Total Burner BTU -
Charboiler Width -
Charboiler BTU per 12” -
Total Charboiler BTU -
Griddle Width 24”
Griddle BTU per 12” 30000
Total Griddle BTU 60000
Specspdf
Drawingspdf
Model HRG24-24GM-P
Width 24.0"
Depth 31.4"
Height 60.2"
Weight (lbs) 341.0
Gas Type Liquid Propane
# of Ovens 1
# of Oven Racks 1
Oven BTU 28000
TEMP RANGE °C 93°C to 260°C
TEMP RANGE °F 200°F to 500°F
TOTAL UNIT BTU 82000
Opertating Gas Pressure 10.0” W.C
# of Burners 0
Burner BTU per 12” -
Total Burner BTU -
Charboiler Width -
Charboiler BTU per 12” -
Total Charboiler BTU -
Griddle Width 24”
Griddle BTU per 12” 30000
Total Griddle BTU 60000
Specspdf
Drawingspdf
Model HRG24-24CH-N
Width 24.0"
Depth 31.4"
Height 60.2"
Weight (lbs) 308.0
Gas Type Natural Gas
# of Ovens 1
# of Oven Racks 1
Oven BTU 30000
TEMP RANGE °C 93°C to 260°C
TEMP RANGE °F 200°F to 500°F
TOTAL UNIT BTU 103000
Opertating Gas Pressure 5.0” W.C
# of Burners 2
Burner BTU per 12” 30000
Total Burner BTU 60000
Charboiler Width 12”
Charboiler BTU per 12” 35000
Total Charboiler BTU 35000
Griddle Width -
Griddle BTU per 12” -
Total Griddle BTU -
Specspdf
Drawingspdf
Model HRG24-24CH-P
Width 24.0"
Depth 31.4"
Height 60.2"
Weight (lbs) 308.0
Gas Type Liquid Propane
# of Ovens 1
# of Oven Racks 1
Oven BTU 28000
TEMP RANGE °C 93°C to 260°C
TEMP RANGE °F 200°F to 500°F
TOTAL UNIT BTU 98000
Opertating Gas Pressure 10.0” W.C
# of Burners 2
Burner BTU per 12” 30000
Total Burner BTU 60000
Charboiler Width 12”
Charboiler BTU per 12” 35000
Total Charboiler BTU 35000
Griddle Width -
Griddle BTU per 12” -
Total Griddle BTU -
Specspdf
Drawingspdf
