Thermostat Griddles
- Durable stainless steel structure that is corrosion resistant and easy to clean
- Simple and reasonable structure, easy to manipulate and maintain
- Highly efficient stainless steel burners Standby pilots
- Thick grill , with excellent heat storage performance and even heating
- Independent thermostat controls to save energy
- Adjustable stainless steel legs
- 3/4" NPT on rear of appliance
ETL Listed
ETL Sanitation Listed
NSF Certified
Product Specifications
| Product# | RCTTG-24-N | RCTTG-36-N | RCTTG-36-P | RCTTG-48-P |
| Burners | 2 | 3 | 3 | 4 |
| Ignition | Manual | Manual | Manual | Manual |
| BTU/h | 25,000 | 25,000 | 25,000 | 25,000 |
| Total BTU/h | 50,000 | 75,000 | 75,000 | 100,000 |
| Weight (lbs) | 160.6 | 229.2 | 229.2 | 293.9 |
| Specs |  | | | |

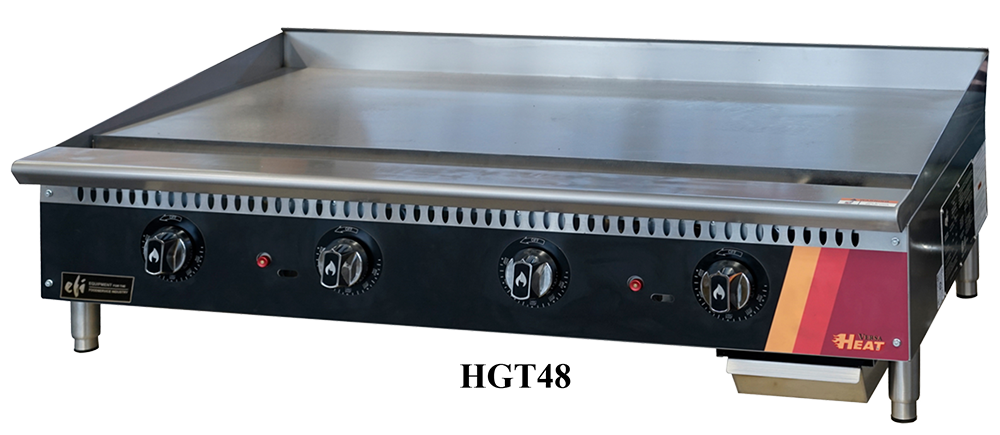

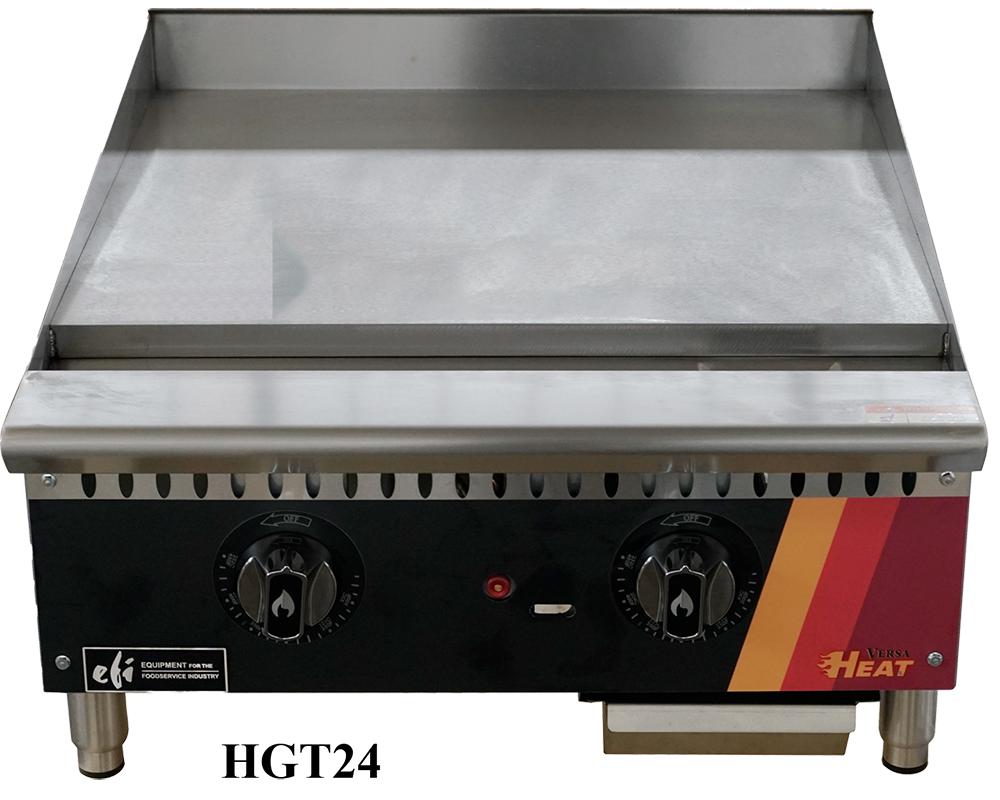

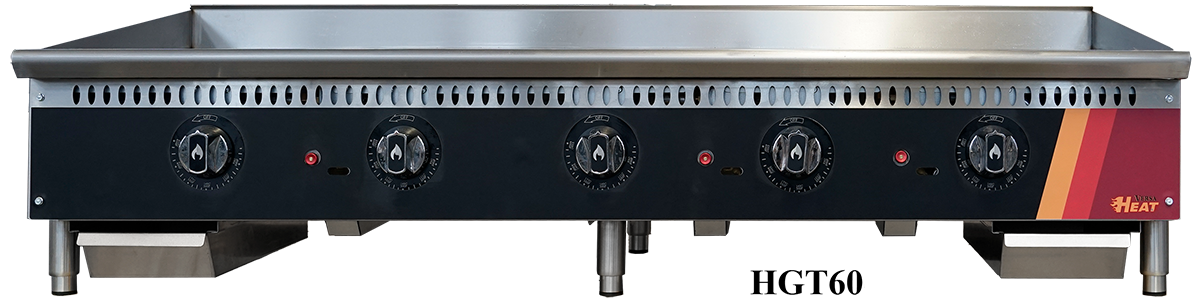

| Product# | HGT24-N | HGT24-P | HGT36-N | HGT36-P | HGT48-N | HGT48-P | HGT60-N | HGT60-P |
| Width | 24" | 24" | 36" | 36" | 48" | 48" | 60" | 60" |
| Depth | 28.7" | 28.7" | 28.7" | 28.7" | 28.7" | 28.7" | 28.7" | 28.7" |
| Height | 15.5" | 15.5" | 15.5" | 15.5" | 15.5" | 15.5" | 15.5" | 15.5" |
| Weight (lbs) | 343.6 | 343.6 | 484.0 | 484.0 | 764.7 | 764.7 | 1,064.8 | 1,064.8 |
| Gas Type | Natural Gas | Liquid Propane | Natural Gas | Liquid Propane | Natural Gas | Liquid Propane | Natural Gas | Liquid Propane |
| Griddle Width | 24” | 24” | 36” | 36” | 48” | 48” | 60” | 60” |
| # of Control | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 |
| # of Burners | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 |
| BTU per Burner | 30000 | 30000 | 30000 | 30000 | 30000 | 30000 | 30000 | 30000 |
| Total BTU Output | 60000 | 60000 | 90000 | 90000 | 120000 | 120000 | 150000 | 150000 |
| TEMP RANGE °C | 93°C to 232°C | 93°C to 232°C | 93°C to 232°C | 93°C to 232°C | 93°C to 232°C | 93°C to 232°C | 93°C to 232°C | 93°C to 232°C |
| TEMP RANGE °F | 200°F to 450°F | 200°F to 450°F | 200°F to 450°F | 200°F to 450°F | 200°F to 450°F | 200°F to 450°F | 200°F to 450°F | 200°F to 450°F |
| Opertating Gas Pressure | 4.0” W.C | 10.0” W.C | 4.0” W.C | 10.0” W.C | 4.0” W.C | 10.0” W.C | 4.0” W.C | 10.0” W.C |
| Specs | | | | | | | | |
| Drawings | | | | | | | | |

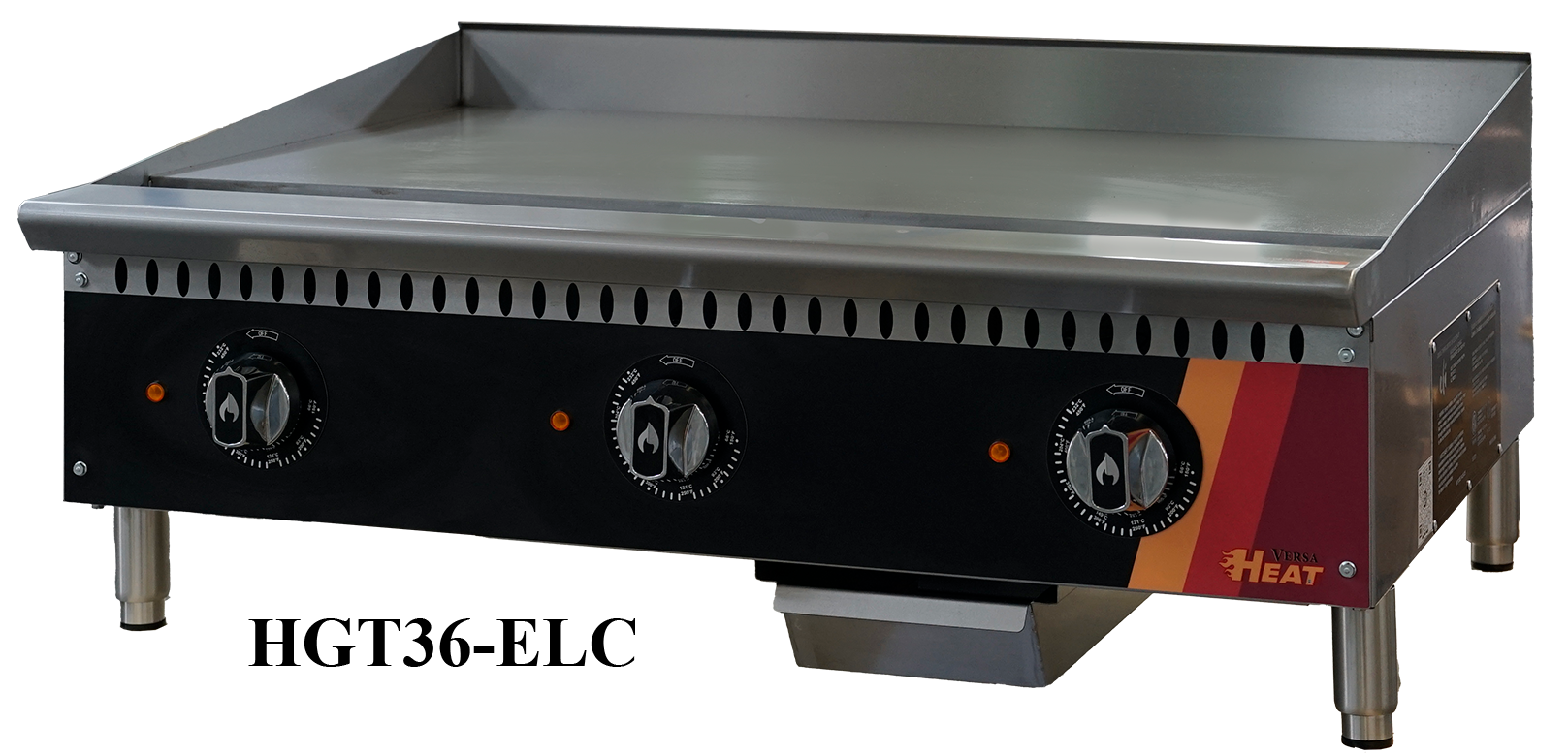

| Product# | HGT12-ELC | HGT24-ELC | HGT36-ELC | HGT48-ELC |
| Width | 12" | 24" | 36" | 48" |
| Depth | 29" | 29" | 29" | 29" |
| Height | 15.4" | 15.4" | 15.4" | 15.4" |
| Weight (lbs) | 99.0 | 150.9 | 220.0 | 283.8 |
| # of controls | 1 | 2 | 3 | 4 |
| Watts per control | 3000 | 6000 | 9000 | 12000 |
| Griddle Width | 12” | 24” | 36” | 48” |
| TEMP RANGE °C | 66°C to 232°C | 66°C to 232°C | 66°C to 232°C | 66°C to 232°C |
| TEMP RANGE °F | 150°F to 450°F | 150°F to 450°F | 150°F to 450°F | 150°F to 450°F |
| Voltage | 208V | 208V | 208V | 208V |
| Plug | Hard Wired | Hard Wired | Hard Wired | Hard Wired |
| Total Amps | 14.44A | 28.88A | 43.3A | 57A |
| Specs | | | | |
| Drawings | | | | |
- 1 year parts and labour
- For full warranty details https://www.efifoodequip.com/page/warranty_info
- Specifications subject to change without notice.
