Radiant Charbroilers
- Durable stainless steel structure that is corrosion resistant and easy to clean
- Extended top side walls to hold grates in place
- Highly efficient stainless steel burner, for maximum heat transfer
- Thick stainless steel radiant plates for quick and even heating
- Standing pilots for instant ignition
- Cast iron grill to maintain the thermal inertia
- Sectioned grates for easy removal and cleaning
- Independent manual controls to save energy
- Adjustable multi-level heavy duty cast iron top grates
- Adjustable stainless steel legs included
- Available in natural gas & propane
- 3/4" NPT on rear of appliance
ETL Listed
ETL Sanitation Listed
NSF Certified
Product Specifications

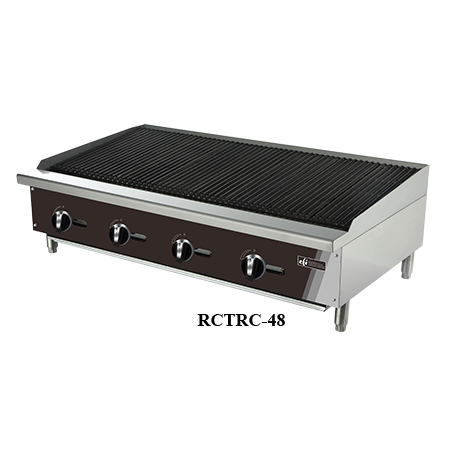

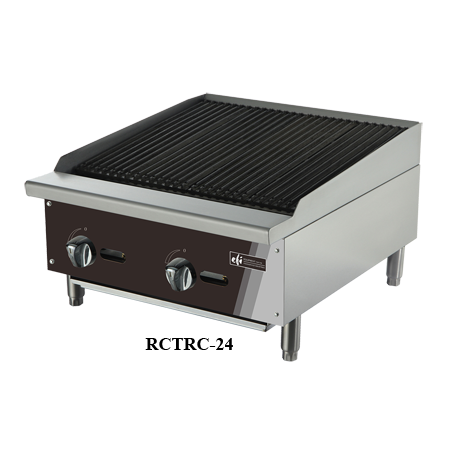

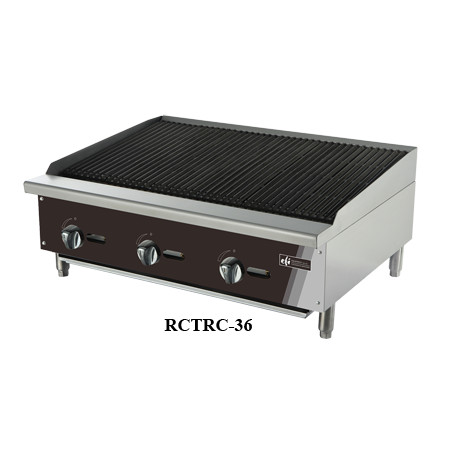

| Product# | RCTRC-24-N | RCTRC-24-P | RCTRC-36-N | RCTRC-36-P | RCTRC-48-N | RCTRC-48-P |
| Burners | 2 | 2 | 3 | 3 | 4 | 4 |
| Ignition | Manual | Manual | Manual | Manual | Manual | Manual |
| BTU/h | 35,000 | 35,000 | 35,000 | 35,000 | 35,000 | 35,000 |
| Total BTU/h | 70,000 | 70,000 | 105,000 | 105,000 | 140,000 | 140,000 |
| Weight (lbs) | 113.5 | 113.5 | 160.9 | 160.9 | 205 | 205 |
| Specs |  | | | | | |

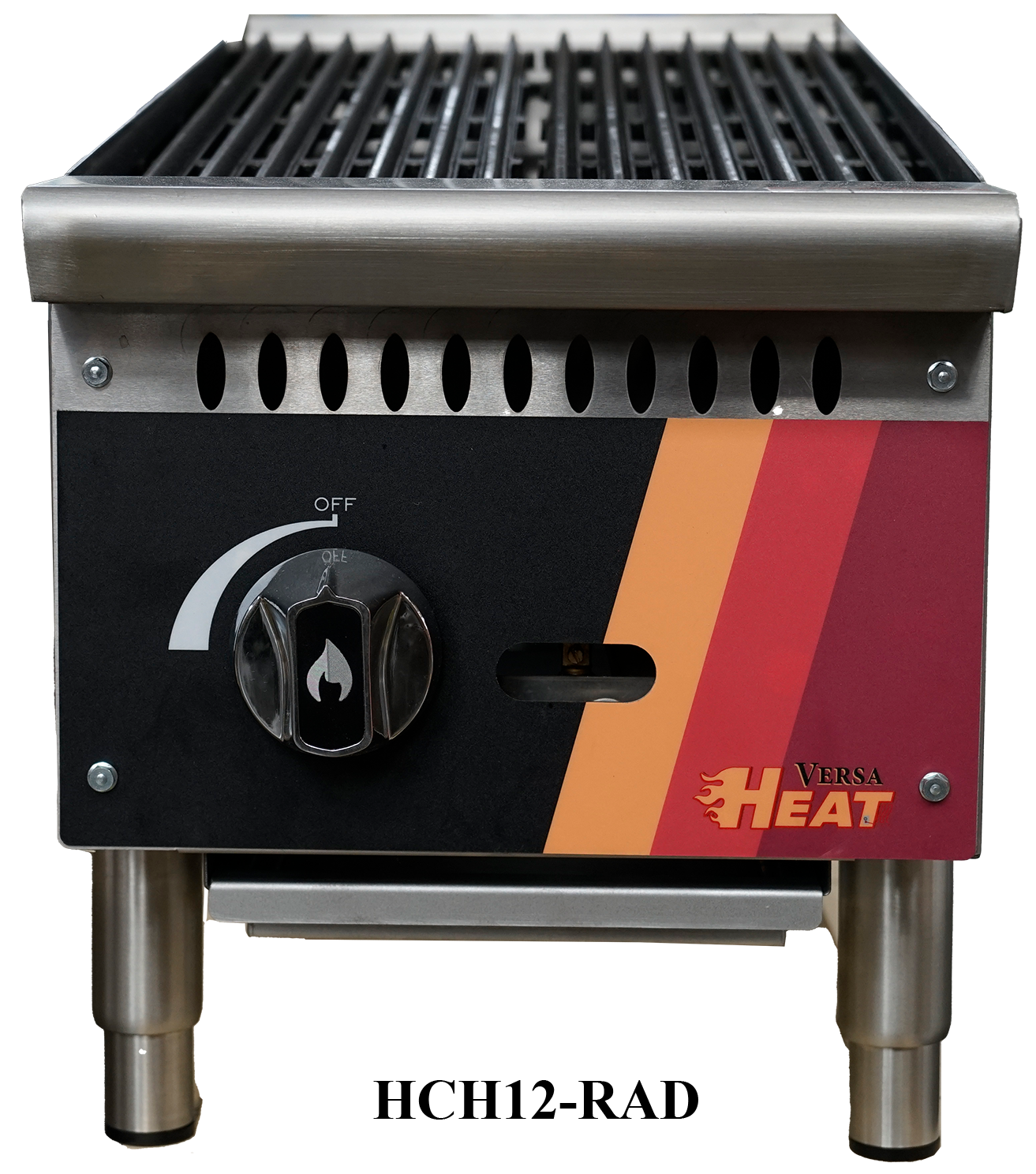

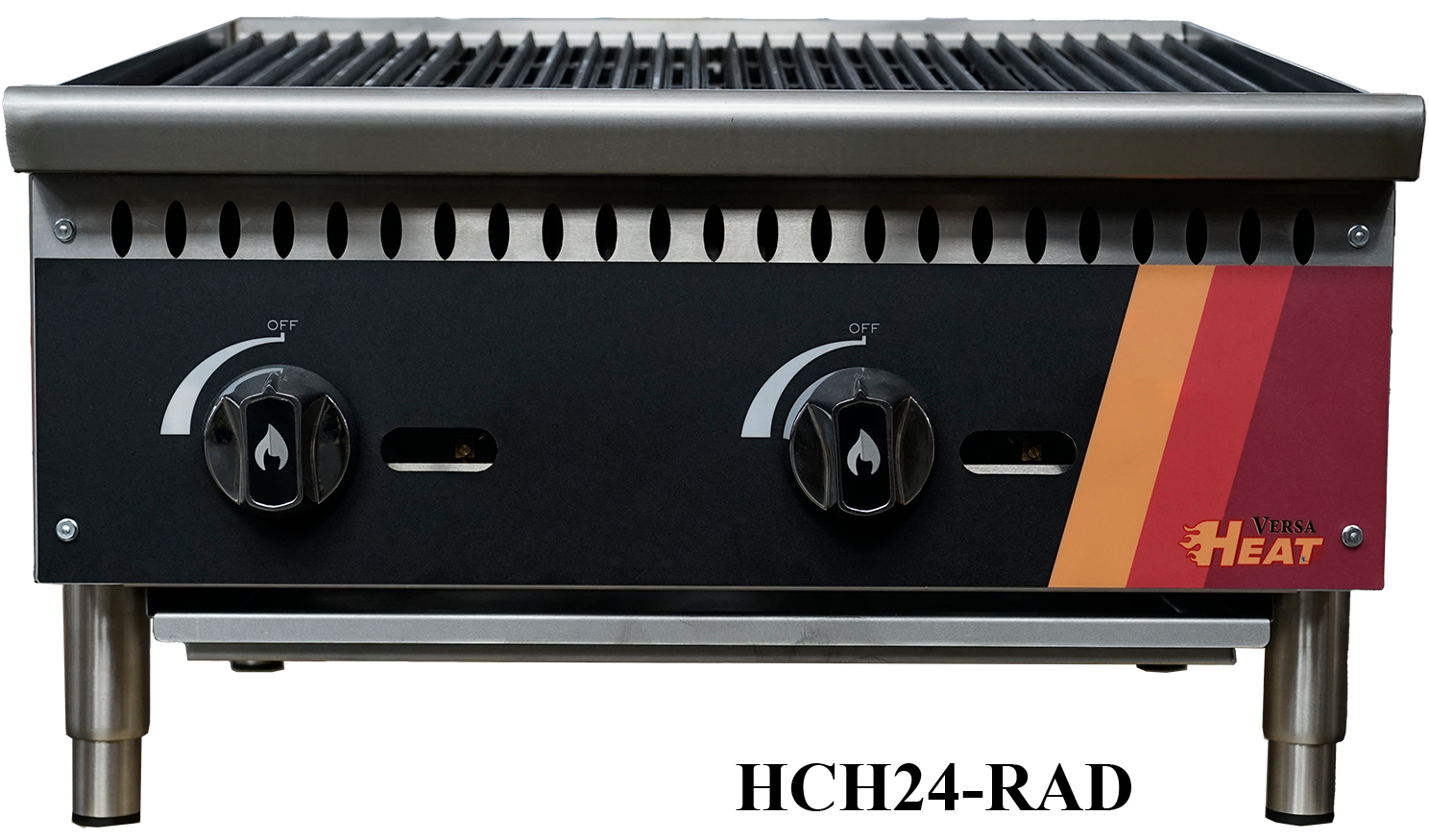

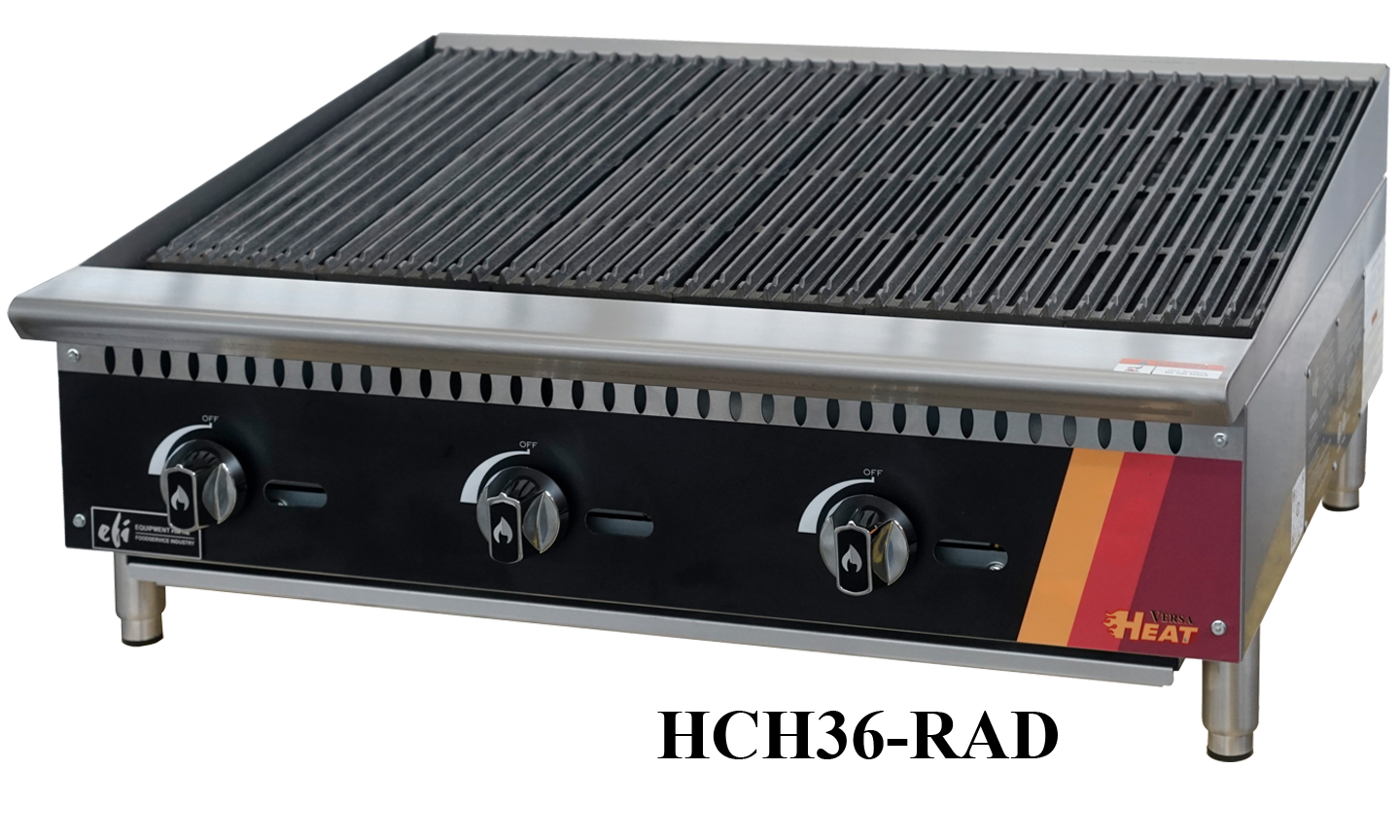

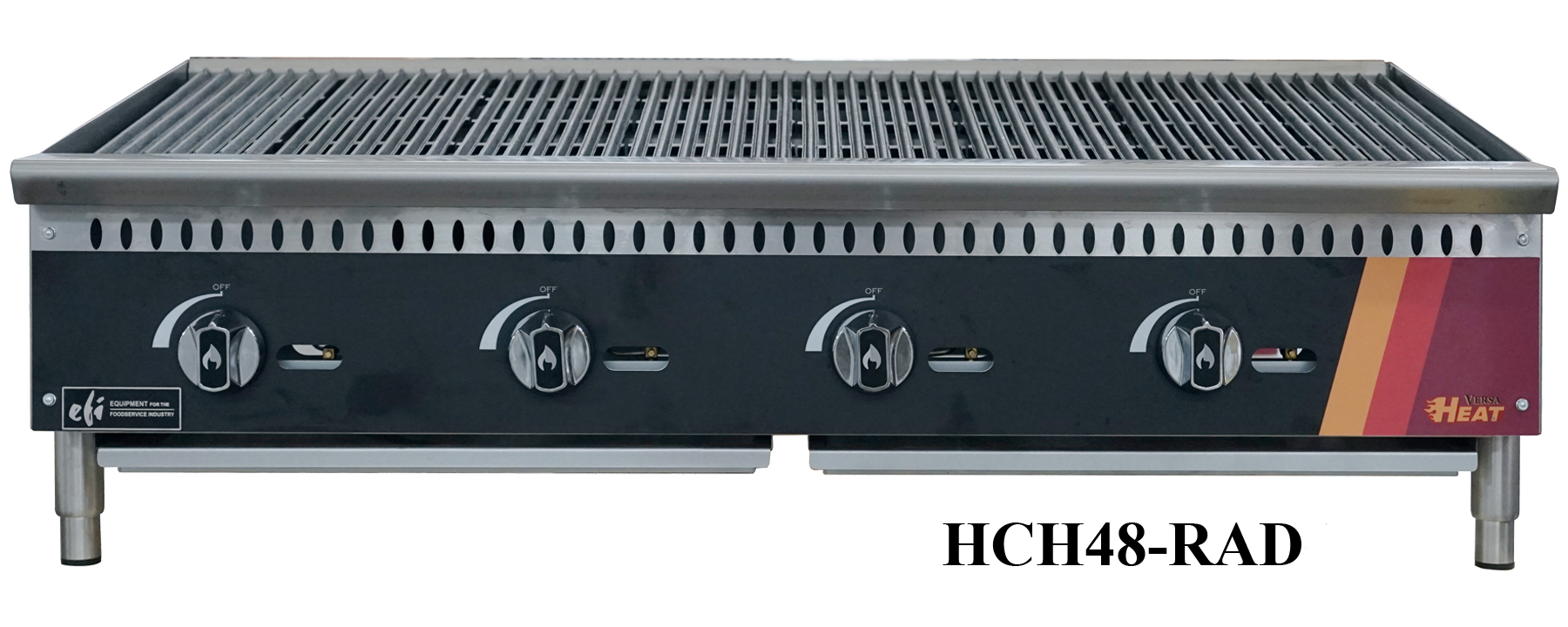

| Product# | HCH12-RAD-N | HCH12-RAD-P | HCH24-RAD-N | HCH24-RAD-P | HCH36-RAD-N | HCH36-RAD-P | HCH48-RAD-N | HCH48-RAD-P |
| Size | 12.0”x 28.7”x 15.5” | 23.6”x 28.7”x 15.5” | 24.0”x 28.7”x 15.5” | 35.4”x 28.7”x 15.5” | 35.8”x 28.7”x 15.5” | 40.6”x 28.7”x 15.5” | 47.6”x 28.7”x 15.5” | 52.8”x 28.7”x 15.5” |
| Ignition | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual |
| Gas type | Natural Gas | Liquid Propane | Natural Gas | Liquid Propane | Natural Gas | Liquid Propane | Natural Gas | Liquid Propane |
| Per BTU B.T.U./h | 35,000 | 35,000 | 35,000 | 35,000 | 35,000 | 35,000 | 35,000 | 35,000 |
| Total BTU B.T.U./h | 70,000 | 70,000 | 105,000 | 105,000 | 140,000 | 140,000 | 140,000 | 140,000 |
| Weight (lbs) | 69 | 69 | 111 | 111 | 154 | 154 | 198 | 198 |
| Specs | | | | | | | | |
| Drawings | | | | | | | | |
- 1 year parts and labour
- For full warranty details https://www.efifoodequip.com/page/warranty_info
- Specifications subject to change without notice.
